Speck Pumps ss484-3400m-1rw Badu Stream Ii Swimjet 4 Hp

Product Description

The SPECK PUMPS ss484-3400m-1rw is a complete Badu Stream II SwimJet system designed to convert a standard pool into a stationary swim training environment. Running on 208-230 volts single-phase power, the system delivers up to 651 GPM of flow from dual 4 HP self-priming plastic pumps driving three adjustable jet nozzles. At 184 pounds, this is a substantial, permanently installed unit suited for both inground and above-ground pool applications. Licensed pool contractors and commercial aquatic installers are the typical trades responsible for installation and commissioning.

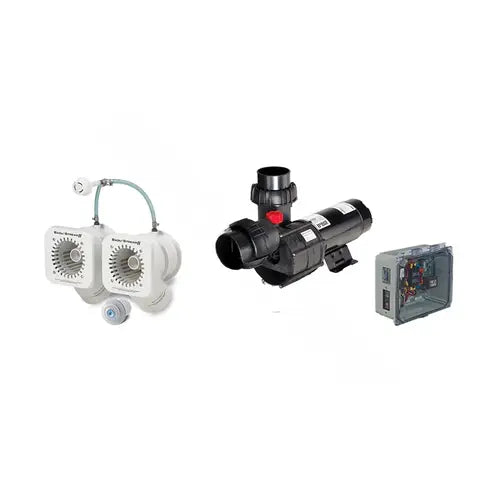

This SwimJet system is designed for residential and light commercial pools where lap swimming or aquatic resistance training is the intended use. It is appropriate for inground and above-ground pool installations. The system ships as a complete package including the flush-mounted jet housing, a round anti-entrapment cover, control box with GFCI pneumatic button and tubing, air regulator, and adjustable water flow jet nozzles, reducing the need for separate component sourcing on the job site.

Key Features

• Dual 4 HP self-priming plastic pumps provide up to 651 GPM continuous flow
• Three adjustable water flow jet nozzles with individual directional control
• Flush-mounted jet housing with round anti-entrapment cover for code-compliant installation
• Integrated control box includes GFCI protection and pneumatic on-off button with tubing
• Undetectable pump suction design reduces visible hardware at the pool wall
• ASME certified system; rated for a maximum working pressure of 16 psi
• Compatible with both inground and above-ground pool applications

Compatibility

Designed for inground and above-ground pool installations per the supplier application data. No specific third-party equipment compatibility information was provided in the product data.

Installation Notes

Installation should be performed by a licensed pool contractor or qualified electrician familiar with NEC requirements for pool and spa equipment, including GFCI protection standards. Shut off all electrical power at the breaker before making any wiring connections to the control box. The system is heavy at 184 pounds and typically requires at least two-person handling and mechanical lifting assistance for positioning. Verify local building and health department requirements for swim jet systems before beginning the rough-in.

Technical Specifications

• Voltage Rating: 208-230 volts
• Phase: 1
• Horsepower: 4 HP
• Flow Rate: 651 GPM
• Flow Rate Max: 700 GPM
• Maximum Working Pressure: 16 psi
• Material: Plastic
• Application: Above Ground, Inground, Pool
• Shipping Dimensions: 18 inches x 42 inches x 30 inches
• Weight: 184 pounds
• Standards and Approvals: ASME Certified

Standard Information

• Brand: SPECK PUMPS
• Manufacturer Part Number: ss484-3400m-1rw
