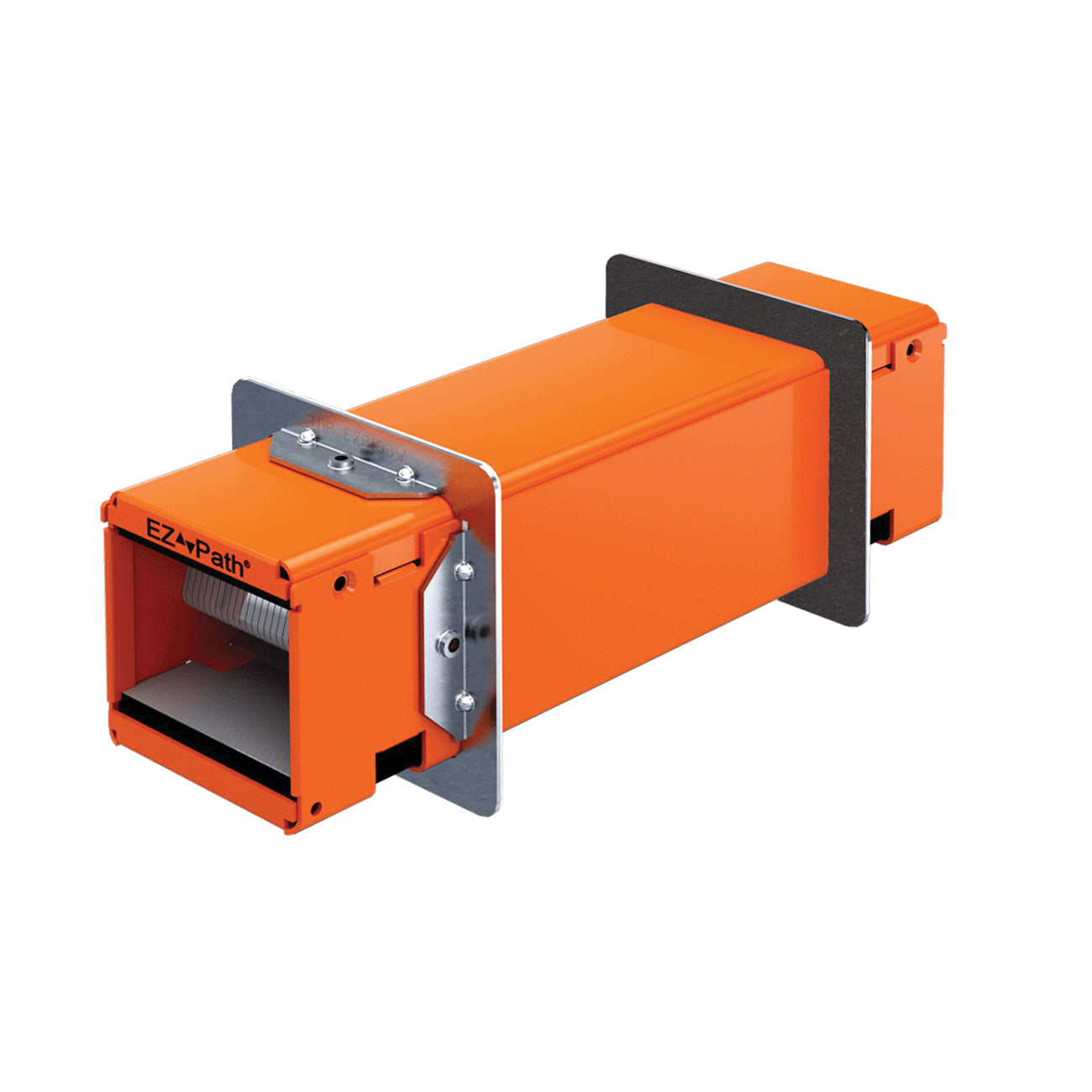

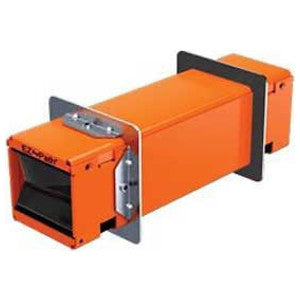

Specified Technologies EZDP33FWS EZ Path Series 33 Fire-Rated Pathway Square Plate Kit, Includes Device with Square Wall Plates and Labels

Product Description

The Specified Technologies EZDP33FWS is a fire-rated pathway solution for moderate cable volumes through fire-rated walls and floors. This kit includes device, square wall plates, and labels for easy installation. It features built-in intumescent pads that react to heat by expanding to form a protective barrier against smoke and flame.

• Self-sealing design for fire and life safety ratings.
• Compatible with new and existing installations.
• Includes various plate configurations for flexible applications.

Product Highlights

This product allows for safe and efficient cable management in fire-rated installations.

Product Information

Standard Information

• Brand: Specified Technologies
• Country of Origin: United States

Technical Specifications

• Product Line: EZ Path
• Product Series: 33
• Fire Rating: 1 to 4 hours
• Material: Steel
• Shape: Square
• Dimensions: 10.5 inches length x 3 inches width x 3 inches height
• Includes: Device, square wall plates, labels
• Specifications Met: ASTM E814, FM Approved, UL 1479, CAN/ULC S115
