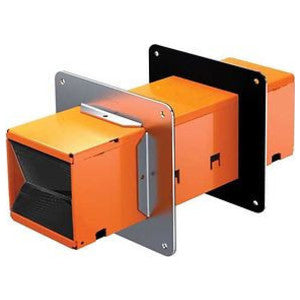

Specified Technologies EZDP144RS2 EZ-Path Series 44+ Split Wall Plate Kit

Product Description

The Specified Technologies EZDP144RS2 is an EZ-Path Series 44+ Split Wall Plate Kit. This kit is designed to manage high cable volume through fire-rated walls and floors while reducing maintenance requirements. The self-sealing intumescent pads adjust automatically to the installed cable fill. Under fire conditions, these pads expand to prevent smoke and flame passage.

• Includes device, split wall plates, and labels.
• Compatible with various applications including metal and plastic pipes, cable trays, and ducts.
• Fire rating of one to four hours, meeting multiple safety standards.

Product Highlights

This product offers an effective solution for fire safety in cable management, ensuring compliance and safety in installations.

Product Information

Standard Information

• Manufacturer: Specified Technologies
• Manufacturer Part Number: EZDP144RS2

Technical Specifications

• Length: 14 inches
• Width: 4 inches
• Height: 4-5/8 inches
• Material: Galvanized Steel
• Fire Rating: 1 to 4 hours
• Specifications Met: ASTM E814, UL 1479, CAN/ULC S115, FM Approved
• Color: Orange
• Shape: Rectangle
