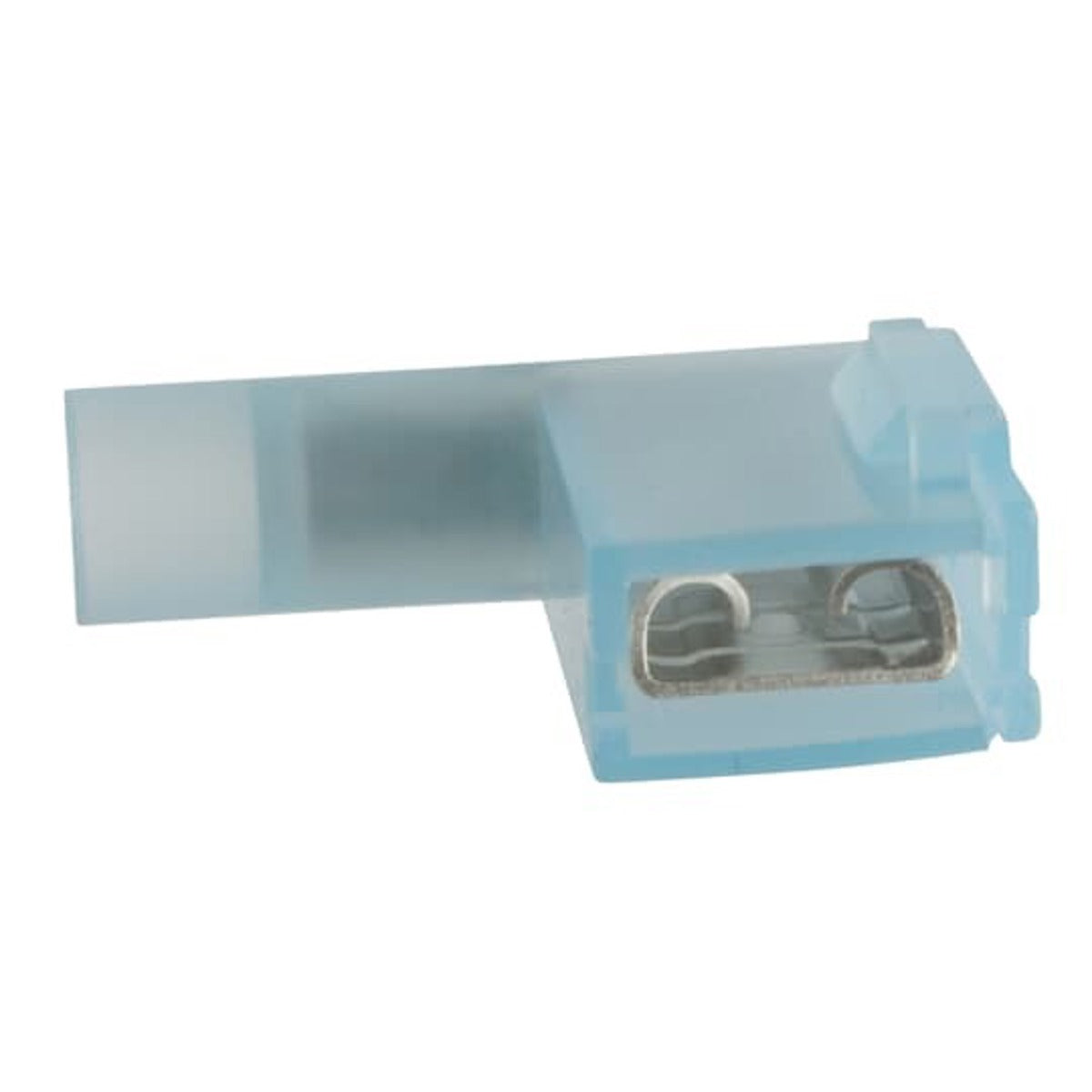

Spec-Kon KNF14-250BFD-D Nylon Barrel Fla

Product Description

The SPEC-KON KNF14-250BFD-D is an insulated nylon female barrel flag disconnect designed for wire ranges 16-14 and a tab size of .250x.032. It features a molded funnel entry insulator, brazed seam, and internal barrel serrations for a secure connection. This disconnect is suitable for applications requiring reliable wire termination.

• Insulated nylon barrel
• Female flag disconnect
• Wire range 16-14

Product Highlights

Insulated nylon female barrel flag disconnect with a wire range of 16-14 and a .250x.032 tab size.

Product Information

Standard Information

• Brand: SPEC-KON
• Manufacturer Part Number: KNF14-250BFD-D
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Type: Nylon Fully Insulated Female Barrel Flag Disconnect
• Brand: SPEC-KON
• Color: Blue
• Finish: Electro Tin Plated
• Voltage: 600 Volt
• Material: Brass
• Standard: UL E66716
• Product UPC: 78621085401
• 12-Digit UPC: 786210854014
• Insulation Type: Polyamide,Nylon
• Temperature Rating: 105 degrees C
• Catalog Number: KNF14-250BFD-D
• Manufacturer: ABB - Installation Products
• Sub Brand: Spec-Kon
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Insulation: Nylon/Polyamide
• Special Features: Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
• GTIN: 00786210854014
• Item Type: Nylon Fully Insulated Female Barrel Flag Disconnect
• ECCN: EAR99
• UNSPSC: 39121447
• Barrel: Barrel Flag
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Approval: UL, UL (Canada and US)
• Barrel Type: Brazed Seam/Funnel Entry/Internal Serration
• Terminal Type: Crimp
• Conductor Size: 16 to 14
• Voltage Rating: 600
