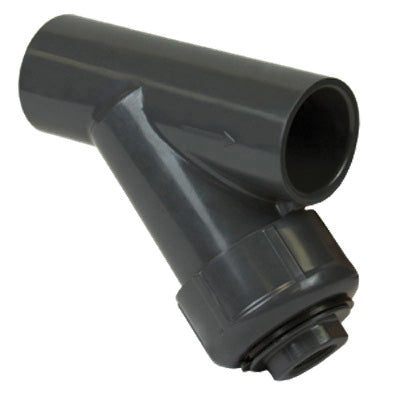

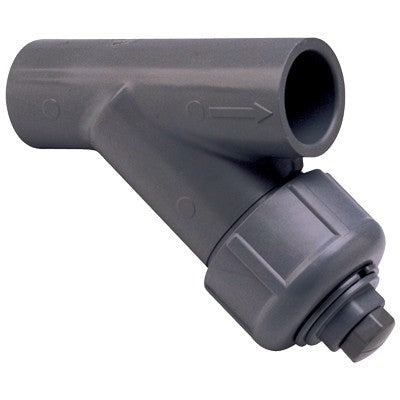

Spears YS22P8-007 3/4 PVC Y Strainer SOC EPDM P8 Mesh

Product Description

The SPEARS YS22P8-007 Wye Strainer is a 3/4 inch nominal PVC body component designed for in-line protection of process equipment. It features EPDM/FKM softgoods and a socket welded connection. The strainer has a 1/4-18 blow-off and a 0.094 sieve opening, ensuring efficient filtration. This domestic product is suitable for both horizontal and vertical installations, providing versatile application in piping systems.

• Provides in-line protection of process equipment.

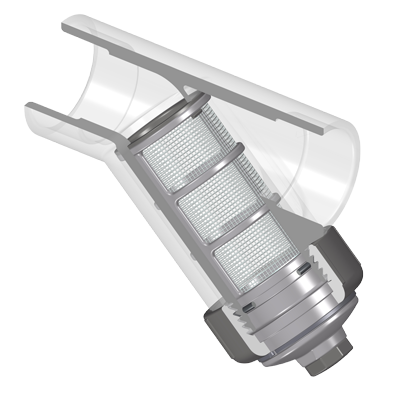

• Removable strainer basket with O-ring sealed drain plug allows quick-flushing or bleed-off valve connection.
• Suitable for horizontal or vertical installation.

Product Highlights

In-line protection for process equipment with removable basket and versatile installation.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: YS22P8-007
• Country of Origin: USA

Technical Specifications

• Color: Gray
• Brand: Spears
• Nominal Size: 3/4 in
• Blow-Off Size: 1/4-18
• Body Material: PVC
• Overall Height: 4-5/8 in
• Overall Length: 3-3/8 in
• Connection Type: Socket Welded
• Seal Material: EPDM/FKM
• Product Type: Y-Strainer Mesh
• Pressure Rating: 150 psi
• Standards: Type I ASTM D-1784 Cell Classification 12454
• Product Group: PVC Pipe Line Strainers
• Maximum Temperature: 140 �F
• Screen Material: PVC
• Sieve Opening: 0.094
