Spears SG118-10CO 1 CPVC Orange FG GripLoc Repair Coupling

Product Description

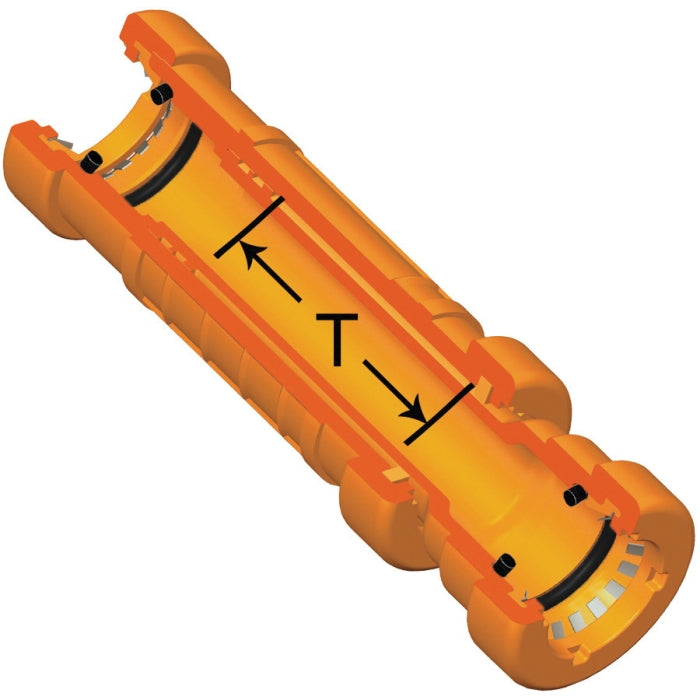

The Spears SG118-10CO is a one-inch CPVC Orange FG GripLoc Repair Coupling. This coupling is designed for efficient connection and repair in CPVC piping systems. It is molded from CPVC material and equipped with an EPDM O-ring seal for a strong and reliable joint.

• 1 inch nominal size with socket end style.
• Pressure rating of 175 psi suitable for many applications.
• Temperature rated up to 150 degrees Fahrenheit.

Product Highlights

This repair coupling is made for easy installation and efficient performance in fire sprinkler systems.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Color: Orange
• Dimensions: 2-1/4 inches wide
• Domestic/Import: Domestic
• End Style: Socket
• Length: 7-3/8 inches
• Method of Manufacture: Molded
• Nominal Size: 1 inch
• Pressure Rating: 175 psi
• Seal Material: EPDM O-Ring
• Temperature Rating: 150 degrees Fahrenheit
• Standards/Approval: ASTM D-1784/F-438/F-439, UL Listed
