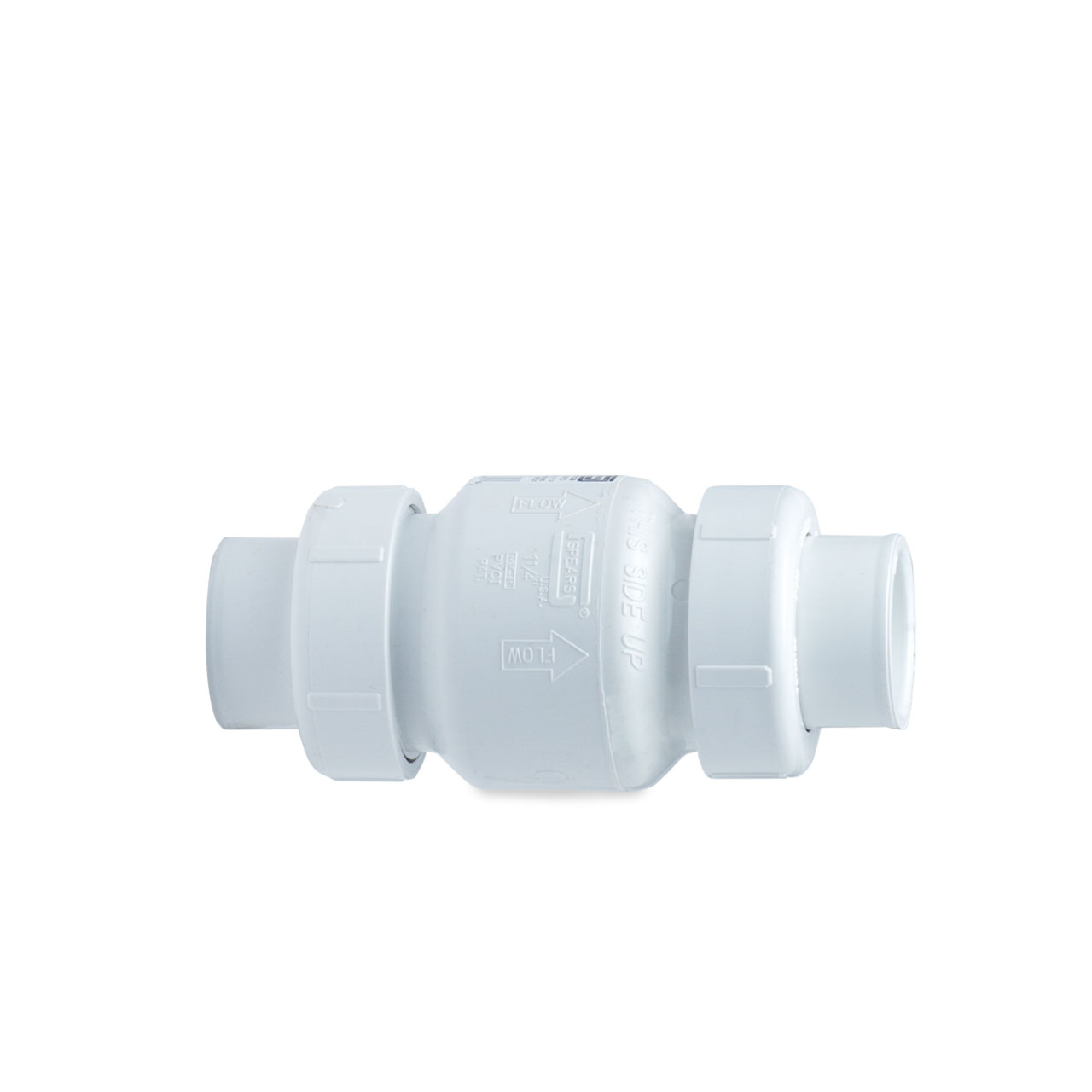

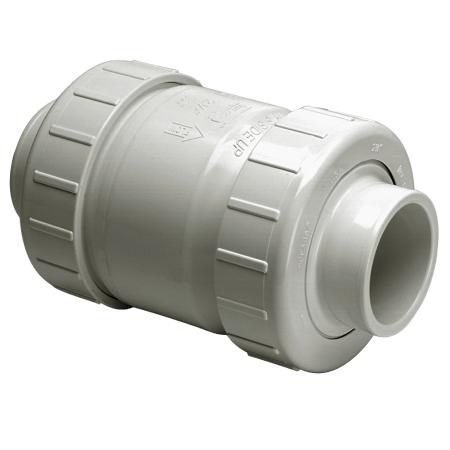

Spears S1780-30 3 PVC TU Utility Sprg Chk Valve Soc EPDM

Product Description

The Spears S1780-30 Utility Spring Check Valve, from the True Union series, features a 3-inch nominal size and socket connection. Constructed with chemical and corrosion-resistant PVC, it includes a long-life EPDM seat with a weighted disc. Engineered for maximum flow and positive shutoff, this valve is suitable for horizontal or vertical up-flow installations and vacuum service.

• Features chemical and corrosion resistant PVC construction
• Maintenance free sealed unit in a compact space saving design
• Engineered for maximum flow, quick response and positive shutoff

Product Highlights

This Spears utility spring check valve is designed for landscape, irrigation, pool, spa, and general-purpose applications. It ensures full-flow with minimal restriction and positive shutoff.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: S1780-30
• Country of Origin: Domestic

Technical Specifications

• Body Material: PVC
• End Style: Socket
• Inlet to Outlet Length: 11-3/16 in
• Nominal Size: 3 in
• Pressure Rating: 150 psi
• Series: True Union
• Temperature Rating: 140 deg F
• Trim Material: EPDM
• Manufacturer: Spears
• Category: Valves Product
• Subcategory: Utility Spring Check Valves
• Type: Utility Spring Check Valves
• Material: PVC
