Spears S1720C15 PVC CL TU UTLTY SW CK VLV SOC EPDM

Product Description

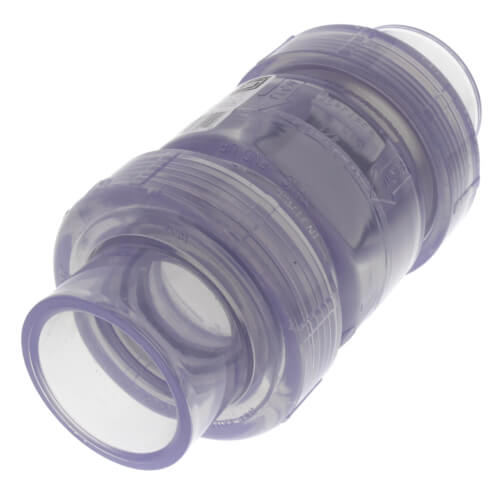

The Spears S1720C15 is a 1-1/2 inch PVC clear true union utility swing check valve. This valve is designed for socket welded applications and operates effectively under pressures up to 150 psi at seventy-three degrees Fahrenheit. The valve's body is made from durable PVC, while the trim consists of EPDM material. It is ideal for media such as water and is suitable for both horizontal and vertical installations.

• True union design allows for easy removal and replacement.
• Equipped with a weighted disc for quick response and positive shut-off.
• Compatible with various applications including irrigation, aquaculture, and general plumbing.

Product Highlights

This valve features high resistance to chemicals and corrosion due to its PVC construction and is engineered for reliable performance in various environments.

Product Information

Standard Information

• Brand: Spears
• MPN: S1720C15

Technical Specifications

• Body Material: PVC
• Trim Material: EPDM
• Dimensions: 3-3/8 inches in height
• Nominal Size: 1-1/2 inches
• Inlet to Outlet Length: 7-3/8 inches
• Pressure Rating: 150/75 psi
• Series: True Union
• Temperature Rating: 140 degrees Fahrenheit
• Low Lead Compliance: No
• Media: Water
• End Style: Socket Welded
• Domestic/Import: Domestic
