Spears S1720-30 3 PVC T/U Utility SWG Chk Valve SOC EPDM

Product Description

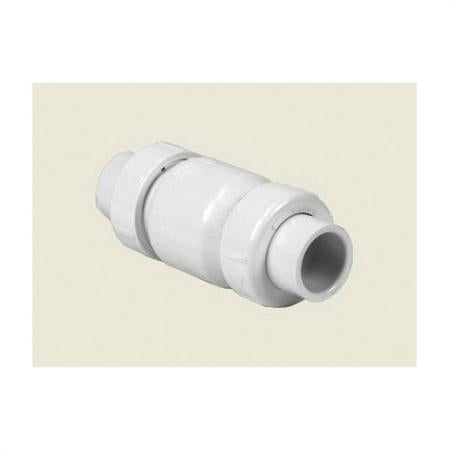

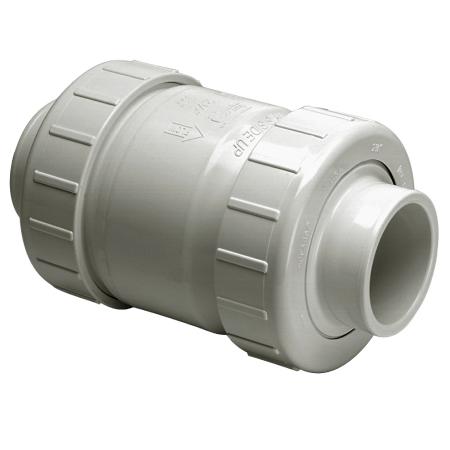

Spears S1720-30 is a 3 inch PVC true union utility swing check valve with socket ends and EPDM trim. This valve is designed for use in a variety of applications including landscape and irrigation, pool and spa systems, and aquaculture. The valve allows for easy in-line replacement and provides reliable service under different conditions.

• True union design for straightforward maintenance and replacement.
• Engineered for maximum flow and quick response.
• Ideal for both horizontal and vertical installations.

Product Highlights

This swing check valve features a PVC body that is chemical and corrosion-resistant, ensuring durability over time.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: S1720-30

Technical Specifications

• Body Material: PVC
• Color: White

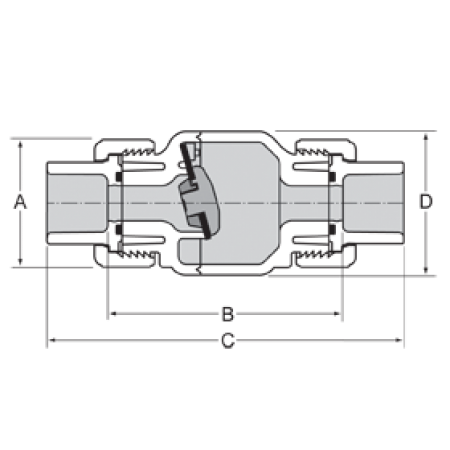

• Dimensions: 5-11/16 inches in height
• End Style: Socket Welded
• Inlet to Outlet Length: 11-3/16 inches
• Media: Water
• Nominal Size: 3 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Low Lead Compliance: No
