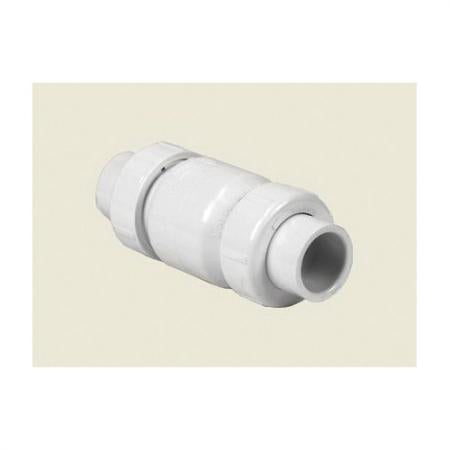

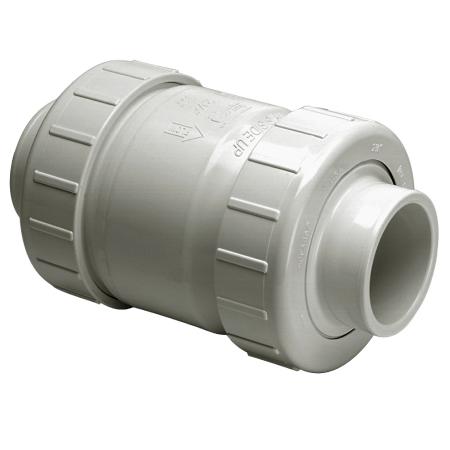

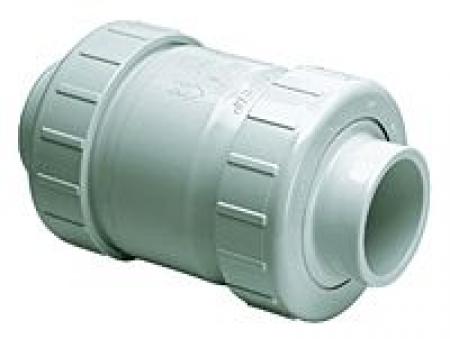

Spears S1720-20 2 PVC T/U Utility Swing Chk Vlv Soc EPDM

Product Description

The Spears S1720-20 is a two inch PVC true union utility swing check valve. This valve is designed for socket welded installation. It can handle pressure ratings of one hundred fifty psi for full flow and seventy-five psi for back pressure. Ideal for water applications, this valve features a durable PVC body with EPDM trim and is suitable for horizontal and vertical installations.

• True union design for easy in-line replacement.
• Chemical and corrosion resistant PVC body.
• Engineered for maximum flow and quick response.

Product Highlights

This utility valve is perfect for landscape irrigation, pools, aquaculture, and general applications. It does not contain any metal parts, ensuring longevity and reliability. The EPDM seat provides a long service life.

Product Information

Standard Information

• Manufacturer: Spears
• Nominal Size: 2 inches

Technical Specifications

• Body Material: PVC
• End Style: Socket Welded

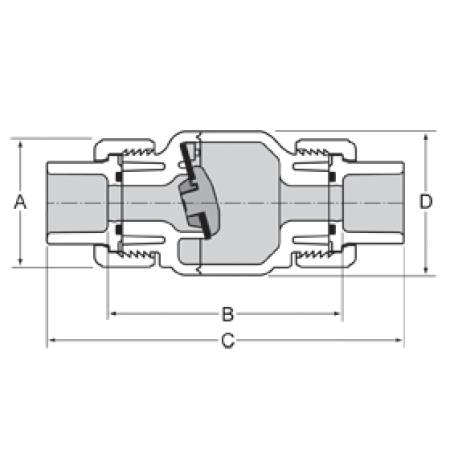

• Inlet to Outlet Length: 8-5/8 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees F
• Domestic/Import: Domestic
• Trim Material: EPDM
• Media: Water
