Spears S1580-30 3 PVC Utility Spring Check Valve SOC EPDM

Product Description

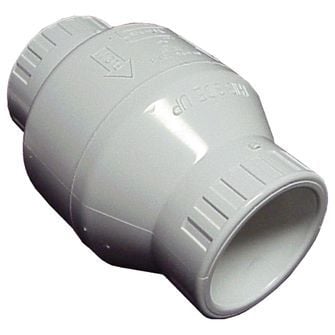

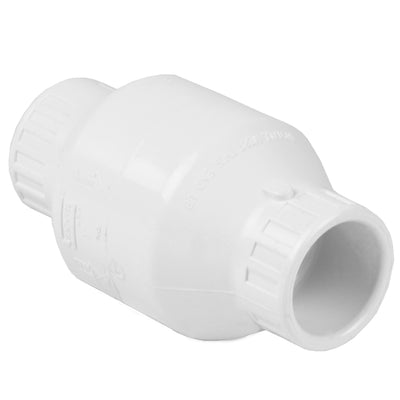

The Spears S1580-30 is a three inch utility spring check valve designed with a socket end. It operates at a pressure rating of 150 psi for open flow and 75 psi for back pressure. Made from durable PVC material, it features an EPDM trim and has an inlet to outlet length of eight and seven-sixteenths inches.

• Spring-assisted design for positive closure.
• Chemical and corrosion-resistant PVC body.
• Maintenance-free, compact unit.

Product Highlights

This valve is ideal for applications in plumbing, landscaping, and aquaculture. It ensures efficient flow control and reliable shutoff in various systems.

Product Information

Standard Information

• Brand: Spears
• MPN: S1580-30

Technical Specifications

• Body Material: PVC
• Color: White
• End Style: Socket
• Nominal Size: 3 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees F
• Trim Material: EPDM
• Inlet to Outlet Length: 8-7/16 inches
• Domestic/Import: Domestic
