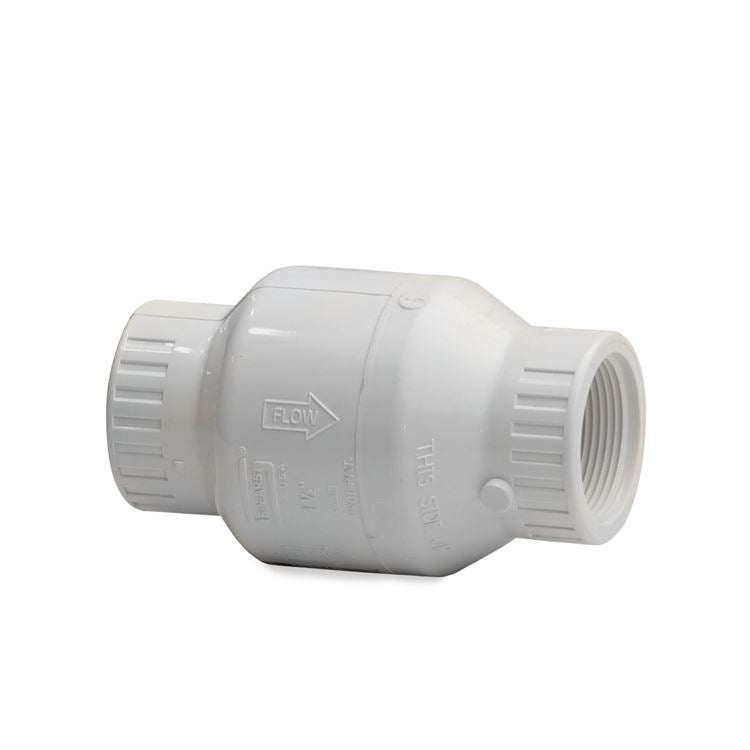

Spears S1580-07 3/4 PVC Utility Sprng Check Vlv Soc EPDM

Product Description

The Spears Utility Spring Check Valve, model S1580-07, features a three-quarter inch nominal size with a socket connection. It is designed for various applications, including landscape irrigation, aquaculture, and general plumbing. This valve supports a pressure rating of up to 150 psi and operates effectively at a temperature of up to 140 degrees Fahrenheit.

• Constructed from chemical and corrosion-resistant PVC
• Maintenance-free with a compact design
• Engineered for maximum flow and quick response

Product Highlights

The design incorporates a spring-assisted mechanism for reliable closing action, ensuring positive shutoff without slamming. Suitable for both horizontal and vertical installations, this valve must be oriented correctly according to the flow direction.

Product Information

Standard Information

• Brand: Spears
• MPN: S1580-07

Technical Specifications

• Body Material: PVC
• Color: White
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 4-1/16 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: EPDM
• Manufacturer: Spears
