Spears S1520C20 2 PVC CL Utility Swng Chk Valve Soc EPDM

Product Description

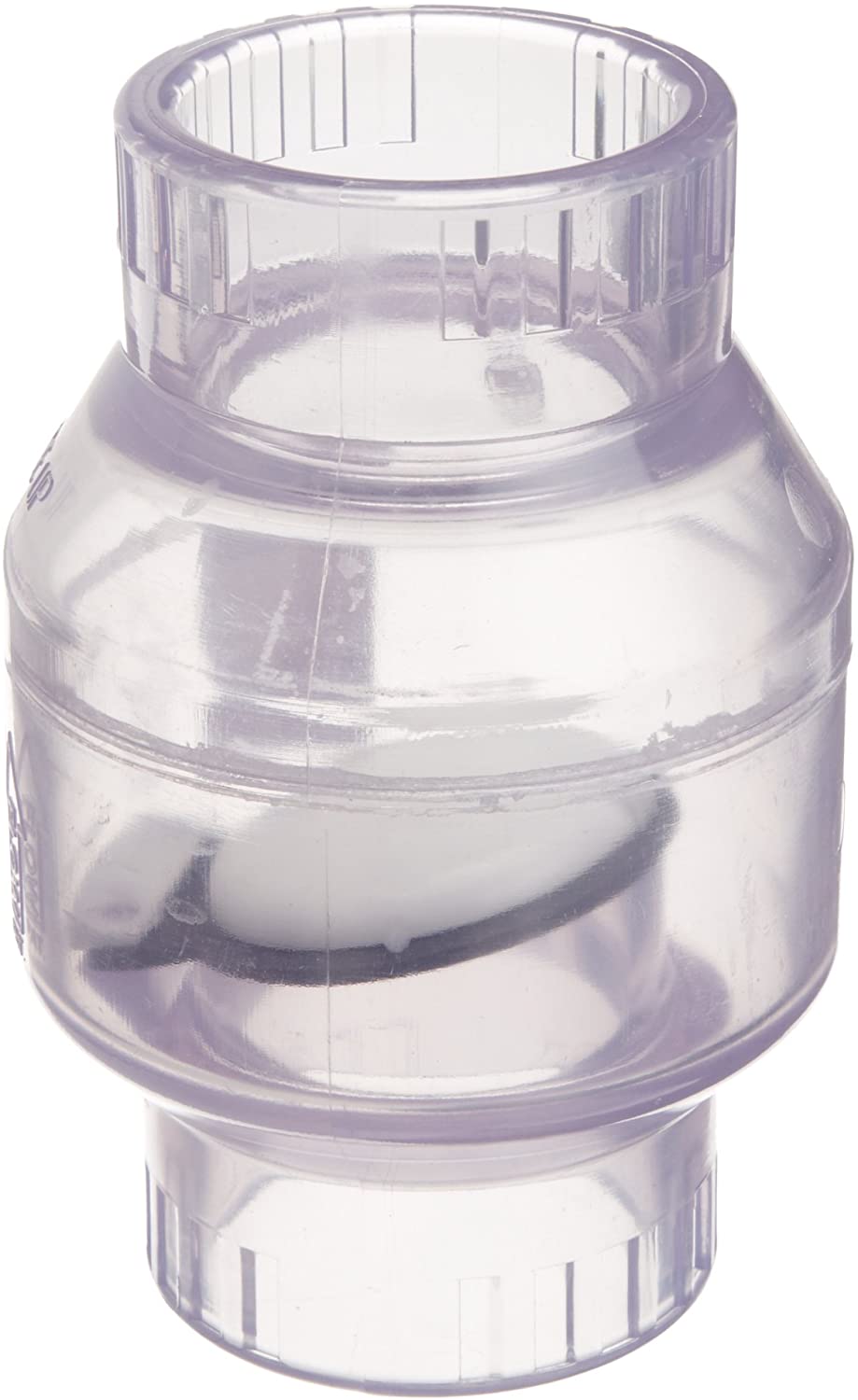

The Spears S1520C20 is a two-inch utility swing check valve designed for various applications including landscape irrigation, pool and spa systems, aquaculture, and OEM uses. This valve has a socket welded end style and is constructed from high-quality PVC material, ensuring resistance to corrosion and chemicals. With a maximum pressure rating of 150 psi and a temperature rating up to 140 degrees Fahrenheit, it operates efficiently under typical conditions.

• Durable PVC body with EPDM trim.
• Designed for both horizontal and vertical installations.
• Ease of maintenance with a top entry design.

Product Highlights

This utility swing check valve features a compact design for easier installations and better flow management. Its weighted disc and angled seat ensure a quick response and reduce closure pressure, providing a reliable seal.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: S1520C20

Technical Specifications

• Body Material: PVC
• Trim Material: EPDM
• Nominal Size: 2 inch
• Pressure Rating: 150/75 psi
• Media Compatibility: Water
• Inlet to Outlet Length: 6-3/8 inches
• Dimensions: 4-1/4 inches height
• Low Lead Compliance: No
• End Style: Socket Welded
• Domestic/Import: Domestic
