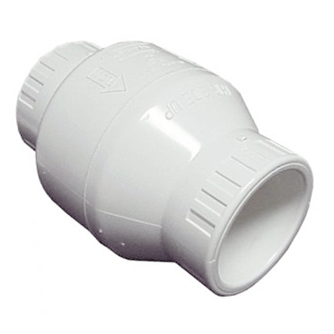

Spears S1520-40 Utility Swing Check Valve 4 PVC Socket EPDM

Product Description

The Spears S1520-40 Utility Swing Check Valve is designed for efficient water flow control. This four-inch valve features a socket welded end style, made from durable PVC with EPDM trim. It operates under pressures of up to 150/75 psi and is suitable for temperatures reaching 140 degrees Fahrenheit. The valve offers a compact, maintenance-free design, making it ideal for various applications.

• Chemical and corrosion resistant PVC construction
• Maintenance-free sealed unit
• Suitable for horizontal and vertical installations

Product Highlights

This valve is engineered for maximum flow and a quick response, ensuring positive shut-off for enhanced system efficiency.

Product Information

Standard Information

• Manufacturer: Spears
• End Style: Socket Welded

Technical Specifications

• Body Material: PVC
• Color: White
• Overall Height: 6-3/8 inches
• Inlet to Outlet Length: 10-1/16 inches
• Low Lead Compliance: No
• Media Type: Water
• Nominal Size: 4 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: EPDM
