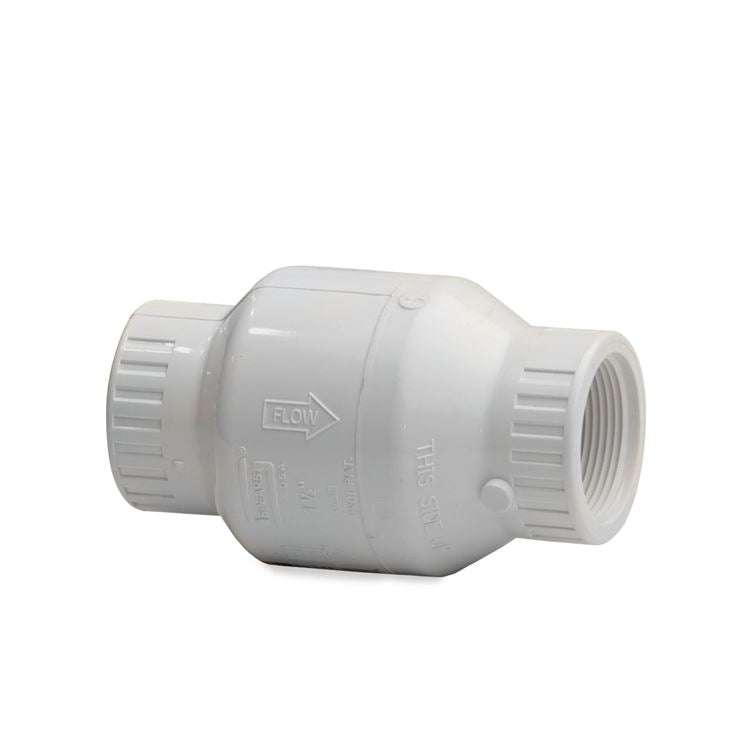

Spears S1520-15 1-1/2 PVC Utility Swng Chk Vlve Soc EPDM

Product Description

The Spears S1520-15 is a 1-1/2 inch PVC utility swing check valve featuring a socket welded end style. This valve is designed to handle pressures up to 150/75 psi and temperatures as high as 140 degrees Fahrenheit. It is primarily used in water applications and has a total inlet to outlet length of five and five-eighths inches. The valve consists of a PVC body and EPDM trim, making it suitable for various plumbing tasks.

• Type: Utility Swing Check Valve
• Nominal Size: 1-1/2 inches
• End Style: Socket Welded

Product Highlights

This valve offers reliable flow control with quick response and positive shut-off features. It is ideal for applications in landscape and irrigation, pool and spa, and aquaculture.

Product Information

Standard Information

• Manufacturer: Spears
• UPC: 054211988046

Technical Specifications

• Body Material: PVC
• Trim Material: EPDM
• Dimensions: 3-3/8 inches in height
• Inlet to Outlet Length: 5-5/8 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Low Lead Compliance: No
• Media: Water
