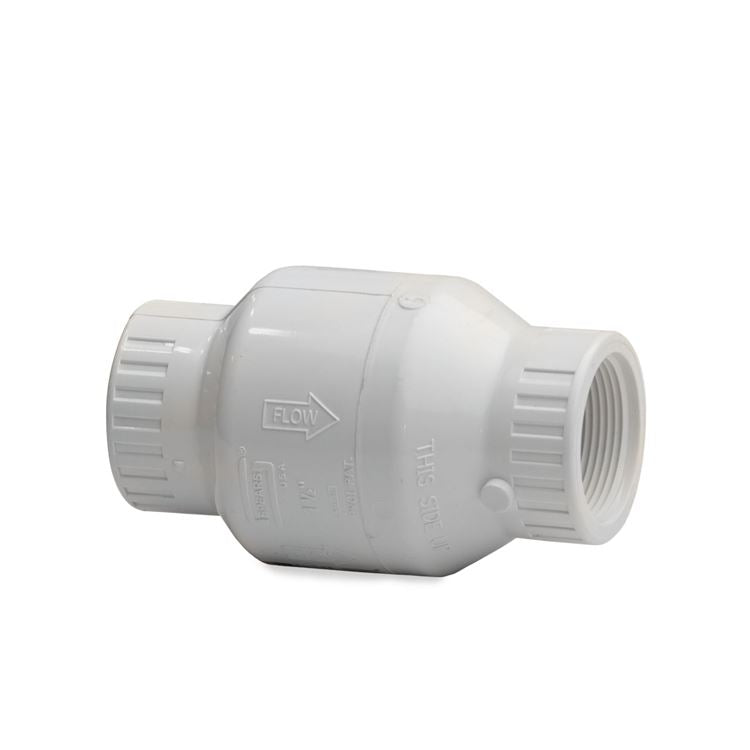

Spears S1520-12 1-1/4 PVC Utility Swng Chk Vlve Soc EPDM

Product Description

The Spears S1520-12 is a 1-1/4 inch PVC utility swing check valve designed for various applications including landscape irrigation, pools, spas, and general purpose installations. This valve features socket welded ends, a PVC body, and EPDM trim for durability and long-lasting performance.

• 150/75 psi pressure rating.
• Compatible with water media.
• Maintenance-free design.

Product Highlights

The swing check valve allows for maximum flow and efficient operation in horizontal and vertical installations. It is engineered for quick response and reliable shut-off capabilities, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Spears
• MPN: S1520-12

Technical Specifications

• Body Material: PVC
• Trim Material: EPDM
• Nominal Size: 1-1/4 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 5-1/2 inches
• Dimensions: 3-3/8 inches high
• Domestic/Import: Domestic
• End Style: Socket Welded
