Spears S110-20 PVC Compression Coupling 200 PSI 2 Inch

Product Description

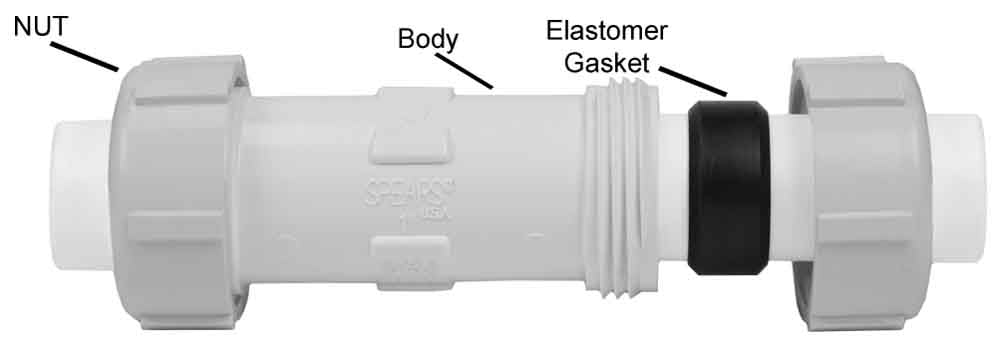

The Spears Manufacturing S110-20 is a PVC compression coupling designed for efficient plumbing connections. This coupling allows for the joining of two pipes with a diameter of two inches using a compression fitting method. It is suitable for applications in potable water systems.

• Connection Type: Compression x Compression
• Material: PVC
• Pressure Rating: 200 PSI

Product Highlights

This coupling is manufactured with high-quality PVC and complies with NSF standards for potable water. Its design offers ease of installation and durability.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• MPN: S110-20

Technical Specifications

• Size A: 2 Inch
• Size B: 2 Inch
• Schedule: 40 S
• Thickness: 0.154 Inch
• Material Specification: ASTM D1784/D2466
• Pressure Rating: 200 PSI at 73 Deg F
• Temperature Rating: 140 Deg F
• Gasket Supplied: Yes
• Gasket Details: Buna-N
• Application: Potable Water
• Gasket to Gasket Distance: 5-1/16 Inch
