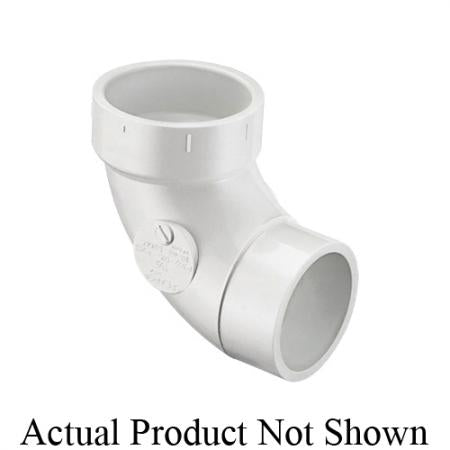

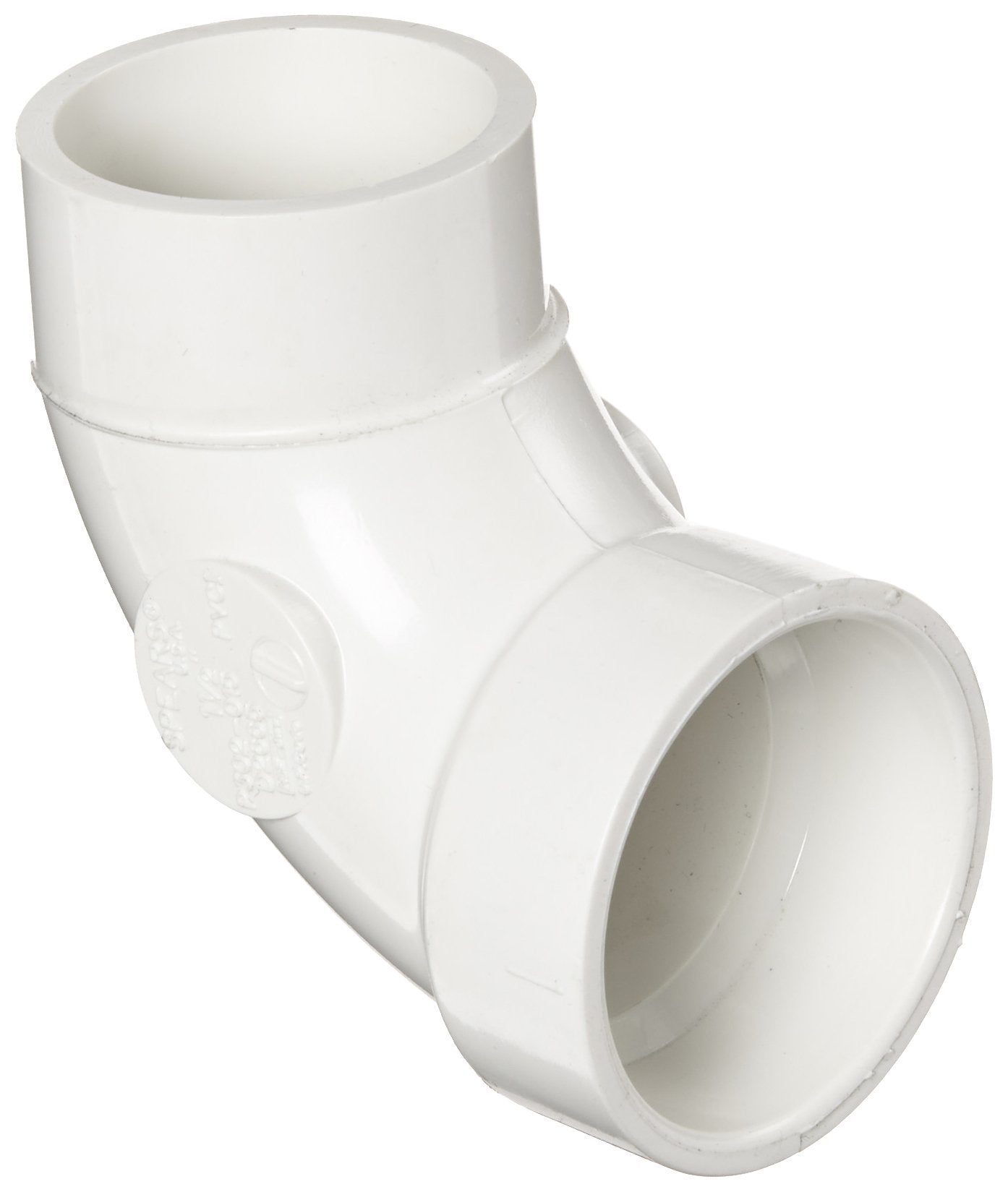

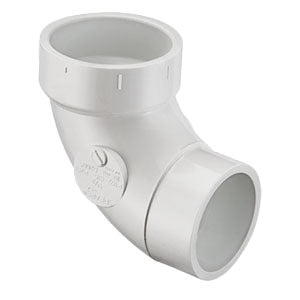

Spears P302-080 8 PVC DWV STREET 1/4 BEND SPIGOTXHUB

Product Description

The Spears P302-080 is an eight-inch PVC DWV 1/4 bend street elbow fitting designed to connect two pipes at a right angle. This fitting features a spigot end and a hub connection, facilitating a change in flow direction in various plumbing systems. It is made from sturdy PVC for durability and corrosion resistance, making it suitable for residential waste water applications.

• 1/4 bend elbow for connecting pipes at a 90-degree angle
• Spigot connection on one end and hub connection on the other
• Complies with ASTM D2665 and ASTM D3311 standards

Product Highlights

Ideal for drainage, waste, and vent applications in residential plumbing systems.

Product Information

Standard Information

• Brand: Spears Manufacturing
• Material: PVC
• Size: Eight inches

Technical Specifications

• Type: DWV drain, waste, and vent fittings
• End Style: Hub x Spigot
• Schedule Rating: SCH 40
• Operating Temperature Range: 73 to 140 degrees F (23 to 60 degrees C)
• Standards Compliance: ASTM D2665, ASTM D3311, NSF/ANSI Standard 14
• Joint Type: P302 1/4 Bend Street
