Spears 4539-015C 1-1/2 CPVC True Union 2000 Industrial Ball Check Valve SOC/FPT FKM

Product Description

Spears 4539-015C 1-1/2 CPVC True Union 2000 Industrial Ball Check Valve is designed for use in various industrial applications. It features a robust CPVC body and FKM softgoods for durability and resistance to chemicals. This valve is fully serviceable with replaceable components, making it suitable for both horizontal and vertical installations, including vacuum service.

• Chemical and corrosion-resistant CPVC construction
• Strong, buttress thread union nuts
• Spears Safe-T-Blocked seal carrier

Product Highlights

Ideal for industrial applications requiring a reliable ball check valve. Easy to service and maintain with standard O-Ring seats and replaceable parts. Assembled with silicone-free, water-soluble lubricant.

Product Information

Standard Information

• Brand: Spears
• MPN: 4539-015C
• UPC: 054211385579

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray

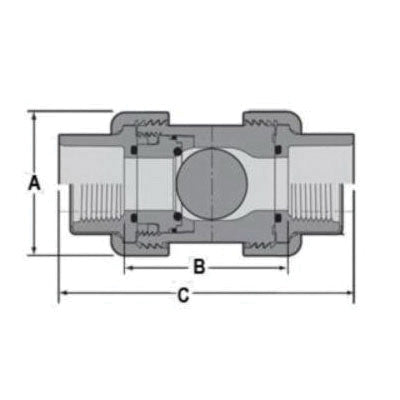

• Dimensions: 3-1/2 inches H
• Domestic/Import: Domestic
• End Style: Socket/FNPT
• Inlet to Outlet Length: 6-1/4 inches
• Media: Water
• Nominal Size: 1-1/2 inches
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Temperature Rating: 73 deg F
• Type: True Union 2000 Industrial
• Joint: CPVC Industrial
• O-Ring: Socket & Threaded Ends
• Subcategory: True Union 2000 Industrial Ball Check Valves
