Spears 3639-020C 2 CPVC TU2K STDBV SOC/FPT FKM

Product Description

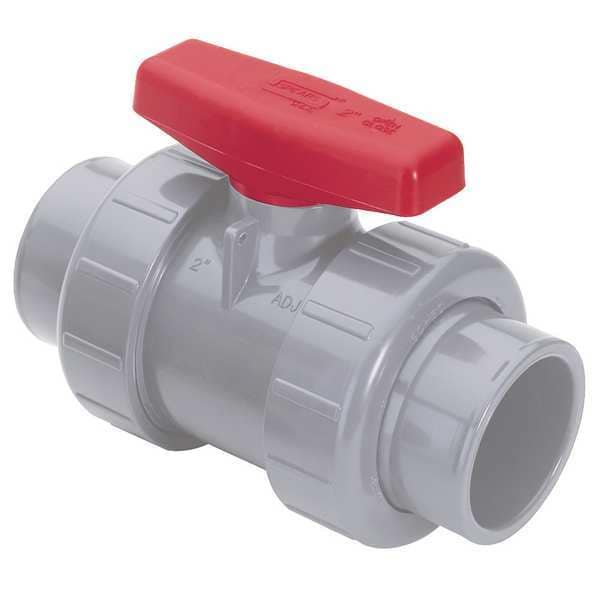

The Spears 3639-020C is a two-inch CPVC true union ball valve designed for socket and FNPT connections. It features a T-handle actuator and can operate up to two hundred thirty-five psi and two hundred degrees Fahrenheit. This valve is constructed with a CPVC body and stem, and houses a PTFE seat trim with an FKM O-ring. The design allows for easy maintenance and replacement of the internal seats.

• Two-inch nominal size
• Constructed from high-quality CPVC
• Suitable for potable water applications

Product Highlights

This ball valve allows for reliable flow control in various plumbing systems. It supports easy upgrades and maintenance due to its replaceable seats and robust design.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Standard

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 7-7/8 inches
• Top to Inlet Center: 3-15/16 inches
• Ball Material: CPVC
• Body Material: CPVC
• Softgoods Material: FKM
• Actuator Type: T-Handle
• End Style: Socket and FNPT
