Spears 3639-015C 1-1/2 CPVC TU2K STDBV SOC/FPT FKM

Product Description

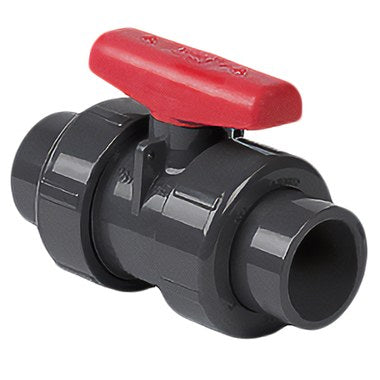

The Spears 3639-015C is a true union ball valve designed for plumbing systems. It features a nominal size of one and one-half inches with socket and female NPT ends. This valve is constructed from CPVC and has a maximum pressure rating of two hundred thirty-five psi. It operates effectively within a temperature range of up to two hundred degrees Fahrenheit, making it suitable for various applications in residential and commercial plumbing.

• Constructed from CPVC material
• Includes FKM soft goods for durability
• Compatible with socket and FNPT end styles

Product Highlights

This ball valve is built for easy maintenance and replacement of parts. The design allows future upgrades and ensures compatibility with NSF-certified systems.

Product Information

Standard Information

• Manufacturer: Spears
• Part Number: 3639-015C

Technical Specifications

• Nominal Size: 1-1/2 in
• Actuator Type: T-Handle
• Pressure Rating: 235 psi
• Temperature Rating: 200 deg F
• Length from Inlet to Outlet: 6-1/4 in
• Top to Inlet Center: 3-1/16 in
• Body Material: CPVC
