Spears 3639-015 1-1/2 PVC TU2K STDBV SOC/FPT FKM

Product Description

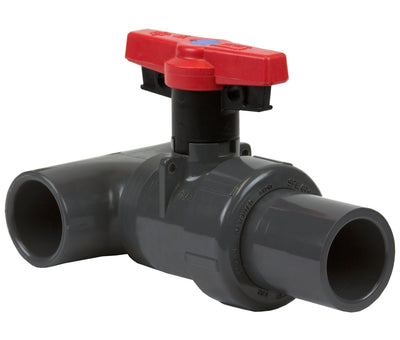

The Spears 3639-015 is a 1-1/2 inch PVC True Union 2000 Standard Ball Valve. This valve features a socket and FNPT end style, designed for reliable service in various plumbing systems. The valve has a maximum pressure rating of 235 psi and can handle temperatures up to 140 degrees Fahrenheit. It offers easy operation with a T-Handle actuator and a durable PVC construction.

• Fits standard plumbing needs with a 1-1/2 inch nominal size.
• FKM softgoods material ensures compatibility with various fluids.
• Replaceable seats for maintenance and extended system life.

Product Highlights

This valve provides flexibility for future upgrades and enhancements in plumbing systems. The self-adjusting floating seat helps ensure a tight seal throughout use.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Standard Ball Valve

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• End Style: Socket and FNPT
• Inlet to Outlet Length: 6-1/4 inches
• Nominal Size: 1-1/2 inches
• Pressure Rating: 235 psi
• Series: True Union 2000
• Softgoods Material: FKM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 3-1/16 inches
• Trim Material: PVC Stem and PTFE Seat
