Spears 3639-012C 1-1/4 CPVC TU2K STDBV SOC/FPT FKM

Product Description

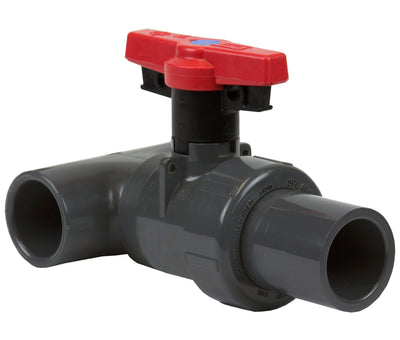

The Spears 3639-012C is a standard true union ball valve made of CPVC. It features a nominal size of one and one-quarter inches with socket and female NPT ends. This valve has a pressure rating of 235 psi and a temperature rating of two hundred degrees Fahrenheit. It includes a T-handle actuator for ease of operation and is designed for a range of plumbing applications.

• Pressure rating up to 235 psi
• Socket and FNPT end style for easy connection
• FKM softgoods for durability

Product Highlights

This ball valve is suitable for use in various plumbing systems and is NSF approved for potable water use. The Spears Safe-T-Shear stem ensures safety by preventing unintended operation.

Product Information

Standard Information

• Brand: Spears
• MPN: 3639-012C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket and FNPT
• Inlet to Outlet Length: 5-3/4 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Temperature Rating: 200 degrees Fahrenheit
• Type: Standard
• Series: True Union 2000
