Product Description

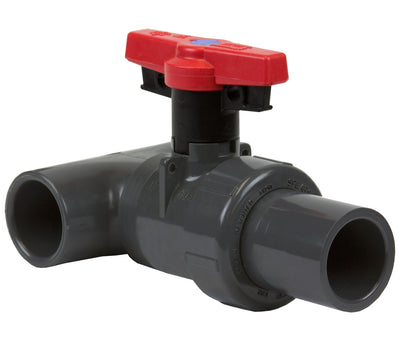

The Spears 3639-010 True Union 2000 Standard Ball Valve is a reliable and durable option for piping systems. Designed by Spears, this ball valve measures 1 inch in nominal size and features both socket and FNPT end styles. It is constructed with PVC material and includes FKM softgoods, ensuring top-notch performance in various plumbing applications.
- Spears Safe-T-Shear stem
- Self-adjusting floating seat
- High-quality standard ball valve
Product Highlights
This ball valve is suitable for potable water use and future system upgrades due to its replaceable seats. It can withstand a pressure rating of 235 psi and operates efficiently at temperatures up to 140 degrees Fahrenheit. The valve is designed with a T-Handle actuator, providing ease of use and functionality.
Product Information
Standard Information
-
Nominal Size: 1 inch
-
Manufacturer: Spears
Technical Specifications
-
Series: True Union 2000
-
End Style: Socket and FNPT
-
Pressure Rating: 235 psi
-
Temperature Rating: 140 degrees Fahrenheit
-
Body Material: PVC
-
Ball Material: PVC
-
Stem Material: PVC
-
Trim Material: PTFE
-
Softgoods Material: FKM
-
Inlet to Outlet Length: 5-1/8 inches
-
Top to Inlet Center: 2-5/16 inches
-
Color: Gray
-
Type: Standard
-
Domestic/Import: Domestic
