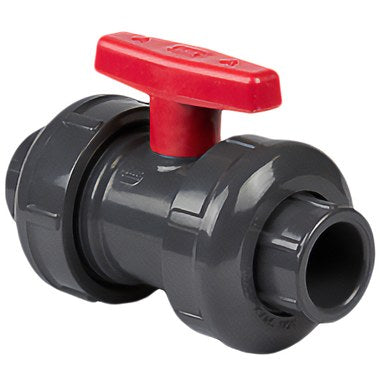

Spears 2339-005 1/2 PVC-VITON TRUE UNION BALL VALVE

Product Description

The Spears 2339-005 is a 1/2 inch PVC-VITON true union ball valve. It features a socket and FNPT connection style. This valve has a pressure rating of two hundred thirty-five psi and a temperature rating of one hundred forty degrees Fahrenheit. This model is designed with a T-handle actuator for ease of operation.

• Chemical and corrosion resistant PVC construction
• Strong buttress thread union nuts
• Fully serviceable and replaceable components

Product Highlights

This valve's design makes it suitable for vacuum service. It includes a self-adjusting PTFE floating seat. The valve is assembled with silicone-free, water-soluble lubricant.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Regular Style

Technical Specifications

• Item Number: 2339-005
• Nominal Size: 1/2 inch
• Body Material: PVC
• Ball Material: PVC
• Softgoods Material: FKM
• End Style: Socket and FNPT
• Inlet to Outlet Length: 5-3/16 inches
• Top to Inlet Center: 2-13/32 inches
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees Fahrenheit
• Series: True Union
• Domestic/Import: Domestic
