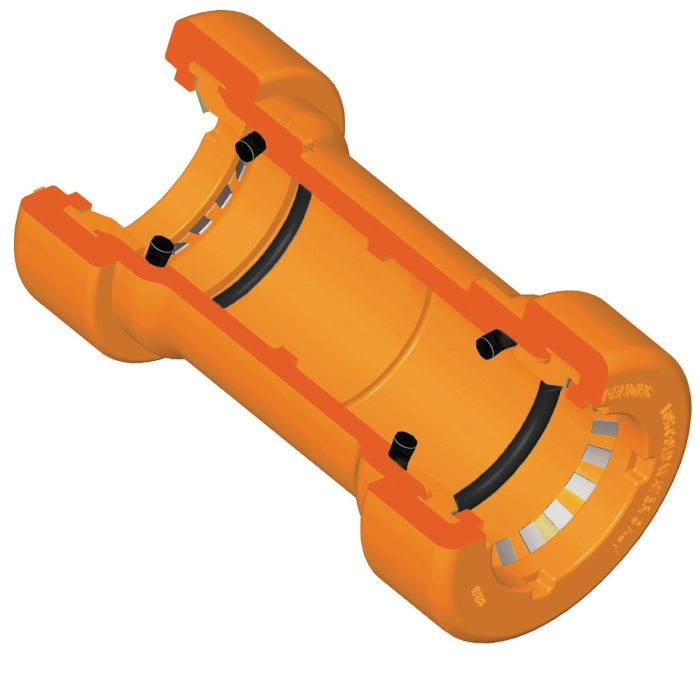

Spears GL4229-010 1 CPVC FlameGuard GripLoc Coupling

Product Description

The Spears GL4229-010 is a one-inch CPVC FlameGuard GripLoc Coupling designed for use in fire sprinkler systems. This push-on fitting is made with a molded CPVC construction. It provides reliable performance with a maximum pressure rating of 175 psi and is compliant with multiple industry standards.

• Material: CPVC
• Pressure Rating: 175 psi
• Temperature Rating: 150 deg F

Product Highlights

This coupling supports quick installation and is optimized for use with various fire sprinkler systems. It features a GripLoc socket for secure connections and is resistant to corrosion, helping to extend its life in harsh environments.

Product Information

Standard Information

• Manufacturer: Spears
• Fitting/Connector Type: Coupling

Technical Specifications

• Color: Orange
• Dimensions: 2-5/16 in OD
• Length: 4-3/16 in
• Nominal Size: 1 in
• End Style: GripLoc Socket
• Seal Material: EPDM O-Ring
• Method of Manufacture: Molded
• Domestic/Import: Domestic
• Standards/Approval: UL listed, FM approved, NSF 14 and 61 certified, NFPA 13, 13R, 13D, and 24 standard
