Spears GL4229-007 3/4 CPVC FlameGuard GripLoc Coupling

Product Description

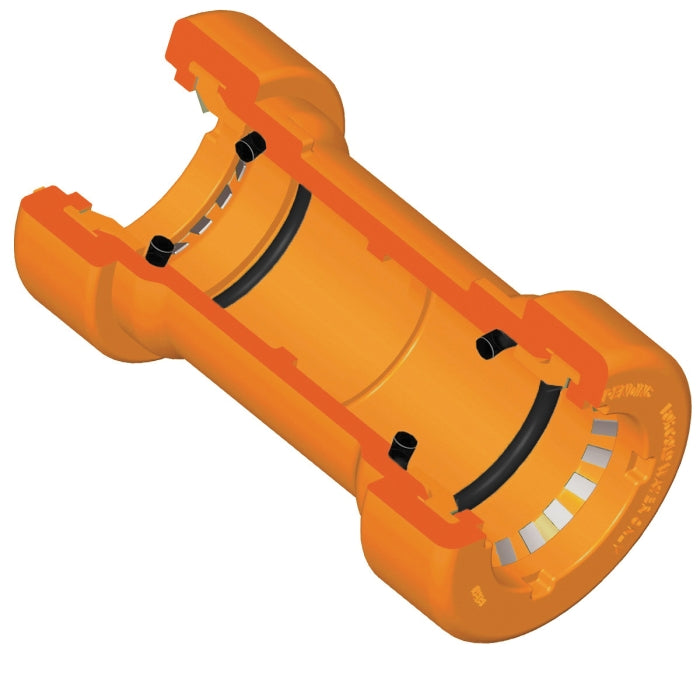

Spears GL4229-007 is a 3/4 inch CPVC FlameGuard GripLoc coupling designed for plumbing and fire protection systems. The coupling allows for push-on connections and features a GripLoc socket for secure fit. This coupling measures four and one-sixteenth inches in length and supports a pressure rating of 175 psi.

• Constructed from durable CPVC material.
• Temperature rating up to 150 degrees Fahrenheit.
• Complies with several industry standards.

Product Highlights

The Spears FlameGuard coupling is ideal for installations in fire sprinkler systems. It provides a cost-effective and corrosion-resistant solution compared to metal alternatives.

Product Information

Standard Information

• Brand: Spears
• Type: Coupling

Technical Specifications

• Color: Orange
• Nominal Size: 3/4 inch
• Length: four and one-sixteenth inches
• Material: CPVC
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees Fahrenheit
• Method of Manufacture: Molded
• Standards/Certifications: UL listed, FM approved, NSF certified
