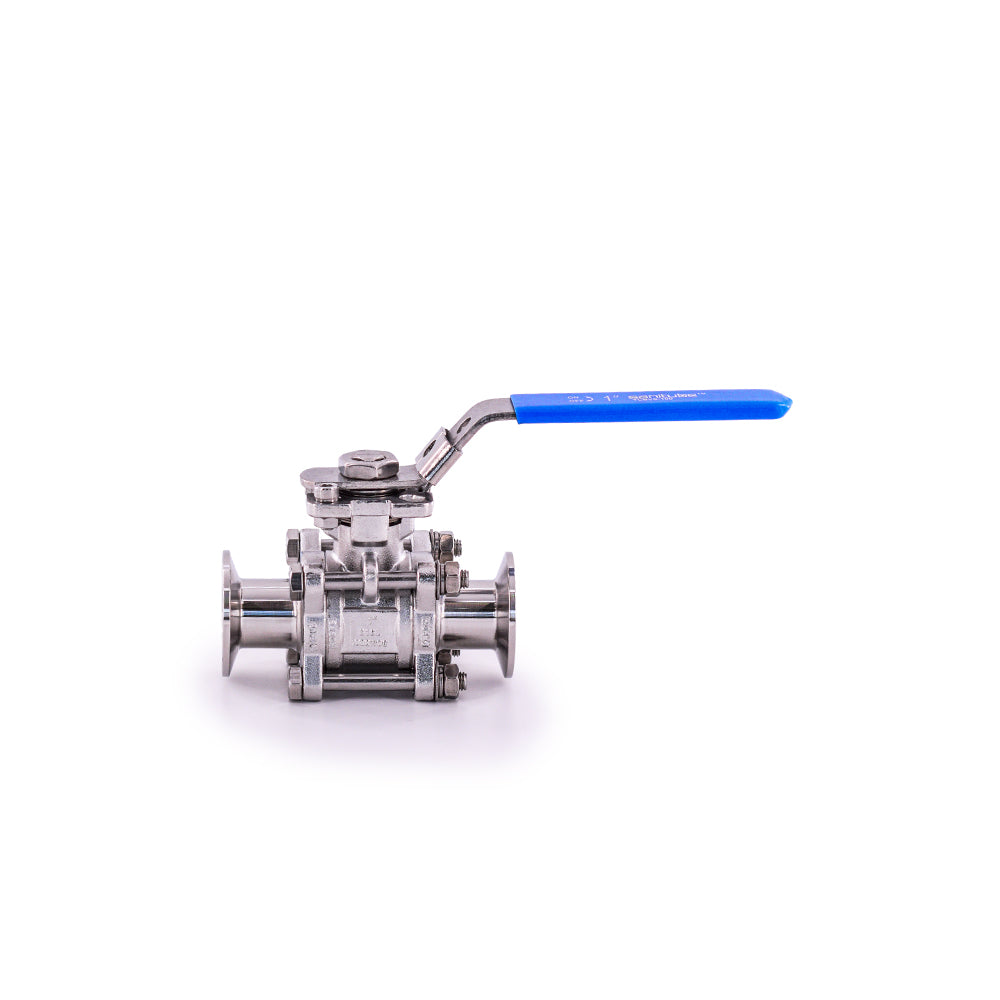

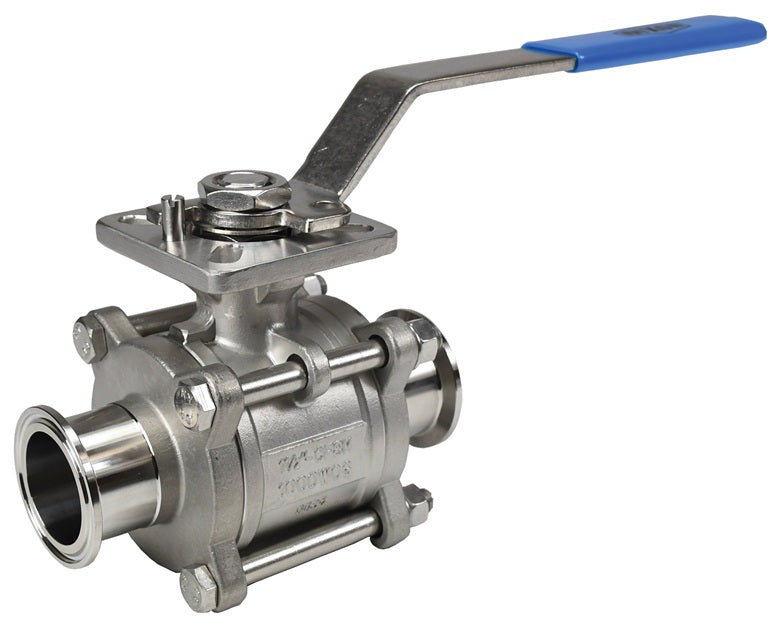

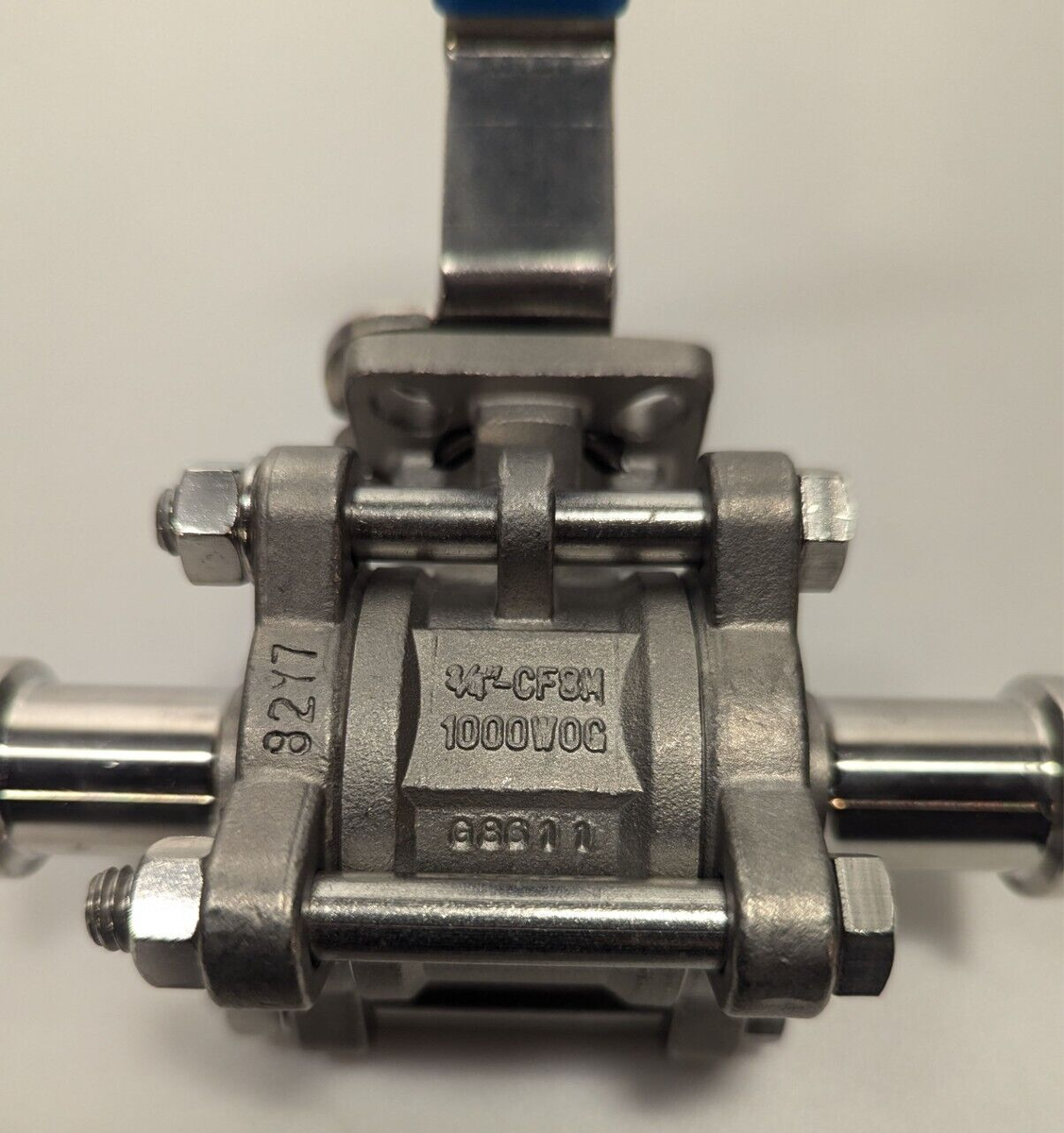

SPEARS BV2CV-075CC-A BV2-Series Encapsulated Sanitary Ball Valve

Product Description

The SPEARS BV2CV-075CC-A is a three-fourth inch 316 stainless steel ball valve designed for sanitary applications. It features a three-piece encapsulated design that reduces cold flow and utilizes live-loaded stem packing for durability. This valve includes precision stainless steel balls that minimize torque and friction, enhancing the longevity of the seat.

• Full port design matches ball and seat ports to tube ID for improved flow.
• Compact structure is ideal for restricted spaces.
• Lockable handle prevents accidental actuation.

Product Highlights

The encapsulated design ensures a bubble-tight seal, making it suitable for hygienic processes in various industries.

Product Information

Standard Information

• Size: three-fourth inch
• Body Material: CF8M Stainless Steel

Technical Specifications

• Pressure Rating: 1000 PSI WOG
• Temperature Range: -20°F to 450°F (-28°C to 232°C)
• Seat Material: Virgin PTFE
• Type: 3-Piece, 2-Way Encapsulated
• End Style: Sanitary Clamp
• Series: BV2C
• Weight: 2.90 lbs
• Dimensions: 4.9 x 1.8 x 4.7 inches
