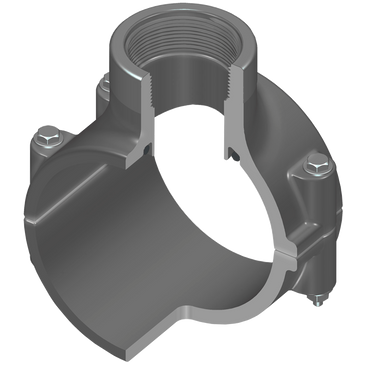

Spears 867-524SR 6X3/4 PVC CLAMP SADDLE SRFPT EPDM ZN BLT

Product Description

Spears 867-524SR is a clamp-on pipe saddle designed for pipes measuring six by three-fourths inches. It features a female NPT connection suitable for various plumbing applications. The saddle has a diameter hole of one and one-eighth inches, making it compatible with standard fittings.

• Constructed from durable PVC material
• Pressure rated for two hundred psi
• Includes EPDM O-ring seal and zinc-plated hardware for secure installation

Product Highlights

This clamp saddle is ideal for use in residential and commercial plumbing projects. It provides a reliable solution for securing pipes in place.

Product Information

Standard Information

• Brand: Spears
• MPN: 867-524SR

Technical Specifications

• Nominal Size: 6 x 3/4 in
• Hole Diameter: 1-1/8 in
• Material: PVC
• Color: Gray
• Connection Type: FNPT
• Pressure Rating: 200 psi
• Temperature Rating: 73 deg F
• Dimensions: 7-3/4 in W
• Domestic/Import: Domestic
• Type: Clamp-On
