Spears 867-420SR 4x2 PVC Clamp Saddle SRFPT EPDM ZNC Bolt

Product Description

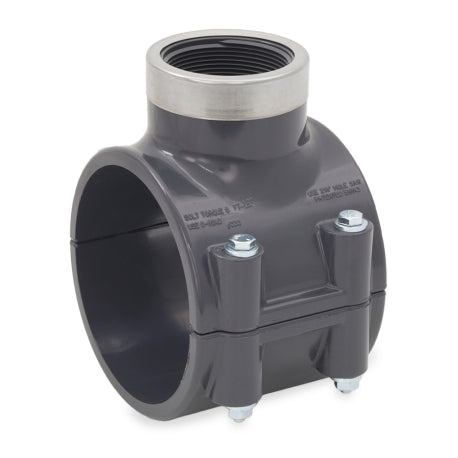

The Spears 867-420SR clamp-on pipe saddle is designed for connecting to pipes. It features a reinforced FNPT connection, a 2-1/4 inch diameter hole, and is suitable for SCH 80/XH schedules. The saddle is made with a PVC clamp and zinc bolt. It provides a strong, leak-proof seal and easy installation.

• EPDM O-ring seal and zinc plated hardware
• Heavy-duty clamp-on saddle design; no cement/glue needed
• SR (Special Reinforced) outlet provides durable, crack-resistant connection

Product Highlights

This clamp-on saddle is easy to install and provides a secure, reinforced connection for demanding applications.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 867-420SR
• Country of Origin: Domestic

Technical Specifications

• Bolt Material: Zinc
• Clamp Material: PVC
• Connection Type: FNPT
• Domestic/Import: Domestic
• Hole Diameter: 2-1/4 in
• Nominal Size: 4 x 2 in
• Pressure Rating: 235 psi
• Schedule Rating: SCH 80/XH
• Temperature Rating: 73 deg F
• Type: Clamp-On
• Manufacturer: Spears
• Brand: Spears
• Category: Schedule 80 PVC Product
• Material: PVC, Zinc
• Maximum Operating Pressure: 235 PSI
• Maximum Working Temperature: 73 F
• Item: Saddle
• Connection Size: 4 in.
• Regulated: No
• Connection 2 Size: 2 in.
