Spears 867-417SR 4 x 1 pvc clamp saddle srfpt epdm zinc bolt

Product Description

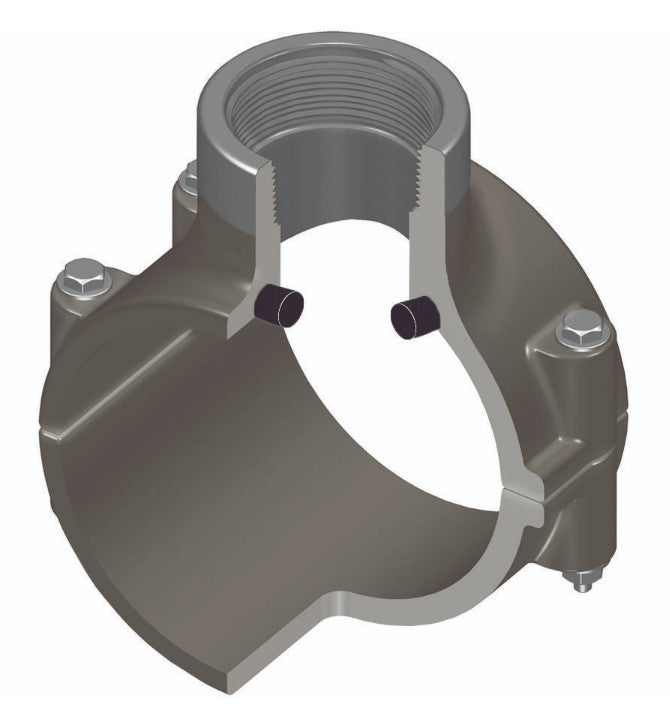

The SPEARS 867-417SR is a 4" x 1" PVC Clamp Saddle SRFPT EPDM Zinc Bolt, providing a secure clamp-on connection for piping systems. This saddle features a 4 x 1 inch nominal size with an FNPT connection and a 1-1/8 inch diameter hole. It is designed for SCH 80/XH schedule applications, rated for 235 psi pressure at 73 deg F, and includes a durable zinc bolt and PVC clamp.

• EPDM O-ring seal and zinc plated hardware for reliable sealing.
• Clamp-on design facilitates easy installation without the need for cement.
• Molded PVC construction ensures durability for SCH 80/XH applications.

Product Highlights

Durable PVC clamp saddle with SRFPT connection, EPDM seal, and zinc hardware for robust pipe branching.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 867-417SR
• Country of Origin: USA

Technical Specifications

• Brand: SPEARS
• MPN: 867-417SR
• Inventory SKU: PV-F-80SC41
• Reference ID: SPEARS867417SR
• Type: Clamp-On Saddle Tee
• Color: Gray
• Nominal Size: 4 x 1 in
• Pipe Size: 4 inch
• Outlet Size: 1 inch FIP (Female NPT Threaded)
• Hole Diameter: 1-1/8 in
• Clamp Material: PVC
• Connection Type: Special Reinforced FNPT
• Domestic/Import: Domestic
• Pressure Rating: 235 psi
• Schedule Rating: SCH 80/XH
• Temperature Rating: 73 deg F
• Category: Schedule 80 PVC Product
• Subcategory: PVC Gray Saddles
• Material: Sch 80 PVC
• Gasket Material: EPDM
• Reinforcement: Special Reinforced (SR) with stainless steel band
• Bolt Material: Zinc
• Hardware Type: Zinc-plated bolts and nuts
