Spears 867-338SR 3X2 Pvc Clamp Saddle Srfpt Epdm Zn Bolt

Product Description

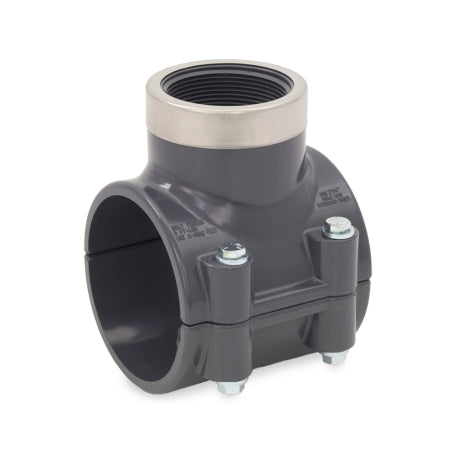

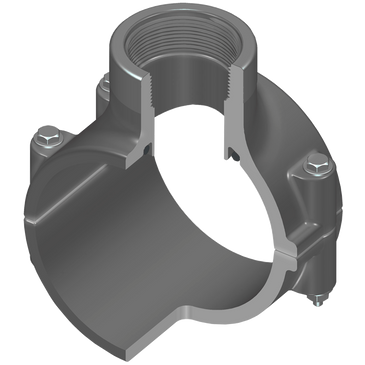

The Spears 867-338SR pipe saddle is a clamp-on fitting with a 3 x 2 in nominal size and FNPT connection. Made with a PVC clamp and zinc bolt, it is designed for SCH 80/XH schedules. It has a pressure rating of 235 psi at 73 deg F. It is suitable for creating branch connections in piping systems.

• Features a 4 in hole
• Includes a 2-1/4 in Dia hole saw
• EPDM O-ring seal and zinc plated hardware

Product Highlights

The Spears clamp-on pipe saddle is easy to install and provides a secure, leak-proof connection.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 867-338SR
• Country of Origin: US

Technical Specifications

• Bolt Material: Zinc
• Clamp Material: PVC
• Color: Gray
• Connection Type: FNPT
• Domestic/Import: Domestic
• Hole Diameter: 2-1/4 in
• Nominal Size: 3 x 2 in
• Pressure Rating: 235 psi
• Schedule Rating: SCH 80/XH
• Temperature Rating: 73 deg F
• Type: Clamp-On
• Manufacturer: Spears
• Item Number: 867-338SR
• Brand: Spears
• Category: Schedule 80 PVC Product
• Contruction: with EPDM O-ring Seal & Zinc-Plated Hardware
• Joint: Clamp-On Saddles
• Size: 3X2
• Subcategory: PVC Gray Saddles
• Weight: 1.39 lbs
