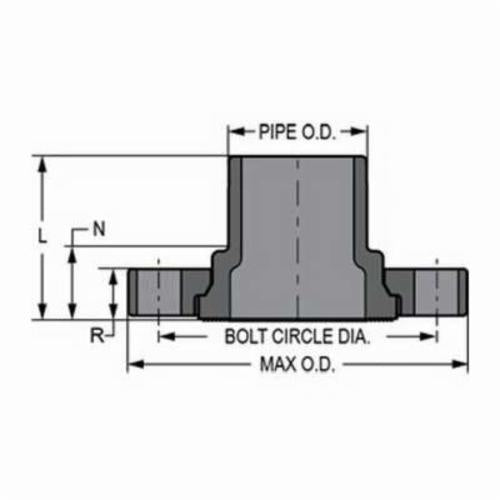

Spears 856-040C CPVC VAN STONE FLANGE SPIGOT CL150

Product Description

The Spears Manufacturing 856-040C is a CPVC schedule 80 spigot flange designed for plumbing applications. This product features a nominal pipe size of four inches and an outside diameter of nine inches. It is made from CPVC material and provides reliable performance for potable water systems.

• Type: 2-Piece, Van Stone
• Pressure Rating: 150 PSI
• Temperature Rating: 200 Deg F

Product Highlights

This flange fitting is known for its exceptional chemical and corrosion resistance, making it ideal for various plumbing applications. The product supports high flow capacity with smooth interior walls that reduce pressure loss.

Product Information

Standard Information

• Brand: Spears Manufacturing
• MPN: 856-040C

Technical Specifications

• Material: CPVC
• Applicable Standard: NSF, ISO 9001, ABS
• End Connection: Spigot
• Flange Outside Diameter: 9 inches
• Nominal Pipe Size: 4 inches
• Pressure Rating: 150 PSI at 73 Deg F
• Temperature Rating: 200 Deg F
• Thickness: 0.337 inches
• Number of Bolts: 8
• Bolt Size: 5/8 inches
• Includes: Plastic Ring
