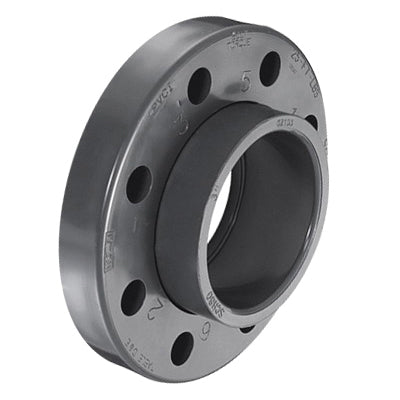

Spears 854P-080 8 PVC Van Stone Flange Sock CL150

Product Description

The Spears 854P-080 is an eight inch Van Stone style flange made from PVC. This product is ideal for use with schedule 40 and schedule 80 piping systems. It features a socket connection type and can withstand a pressure rating of one hundred fifty psi. This flange is NSF approved and meets various industry standards.

• Van Stone style, designed for reliable connections
• Compatible with schedule 40 and schedule 80 PVC pipes
• NSF approved for safe use in plumbing systems

Product Highlights

Ideal for various plumbing and construction applications, offering durability and reliability in high-pressure environments.

Product Information

Standard Information

• Manufacturer: Spears
• Nominal Size: 8 inches

Technical Specifications

• Connection Type: Socket
• Material: PVC
• Pressure Class: 150 lb
• Pressure Rating: 150 psi
• Schedule Rating: SCH 40/STD/SCH 80/XH
• Temperature Rating: 73 degrees Fahrenheit
• Standards/Approval: ANSI/ASME B-16.5, NSF Approved, ASTM F-439, ASTM F-1498, ASTM D-1784 (Cell Classification 23447-B)
