Spears 854-140 14 PVC Van Stone Flange Soc CL150

Product Description

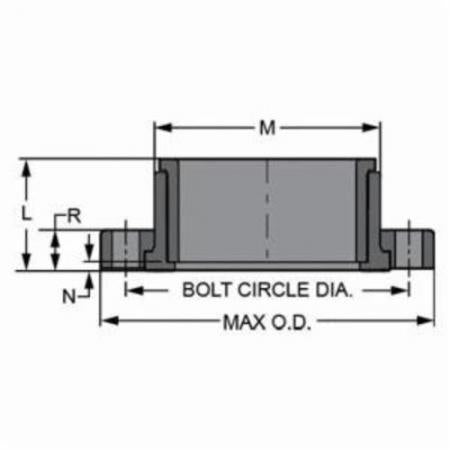

The Spears 854-140 is a 14 inch PVC van stone flange classified for use in various plumbing applications. This product offers a socket connection, designed to handle a pressure rating of 150 psi. The flange has an outside diameter of twenty-one inches and a bolt circle diameter of eighteen and three-quarters inches. Manufactured from durable PVC material, this product is gray in color and stands seven and one-half inches tall. The Spears 854-140 is suited for both standard and heavy-duty schedules, including SCH 40, STD, SCH 80, and XH.

• Nominal Size: 14 inches
• Pressure Rating: 150 psi
• Connection Type: Socket

Product Highlights

The Spear 854-140 is ideal for installation in various plumbing systems, providing reliable sealing and support.

Product Information

Standard Information

• Manufacturer: Spears
• Color: Gray

Technical Specifications

• Pressure Class: 150 lb
• Outside Diameter: 21 inches
• Dimensions: 7-1/2 inches height
• Domestic/Import: Domestic
• Temperature Rating: 73 degrees Fahrenheit
• Material: PVC
• Schedule Rating: SCH 40/STD/SCH 80/XH
• Bolt Circle Diameter: 18-3/4 inches
