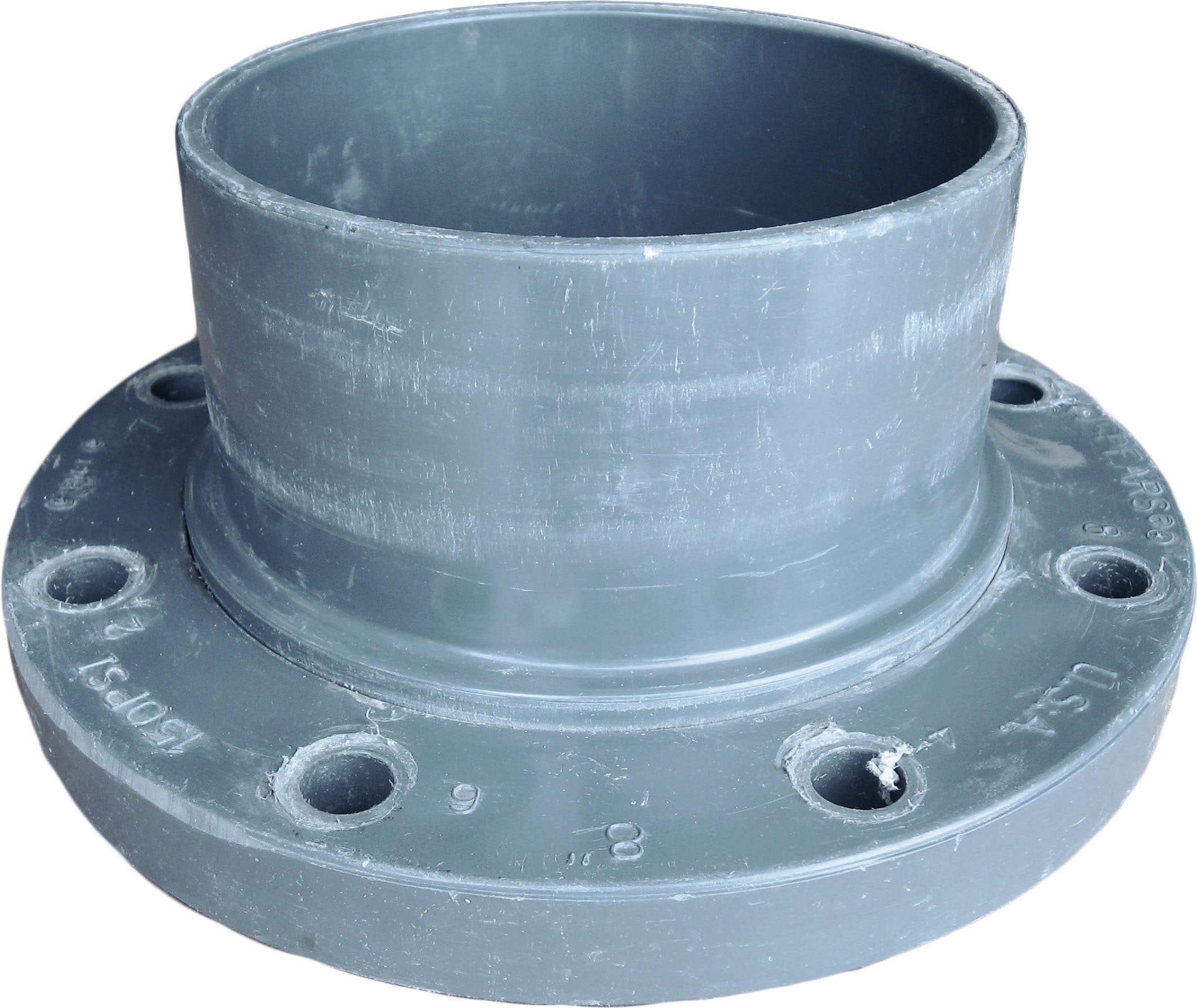

Spears 854-080 Glass-Filled PVC Pipe Fitting Van Stone Flange Class 150 Schedule 80 8 Socket

Product Description

The Spears 854-080 is a glass-filled PVC pipe fitting designed as a Van Stone flange with a Class 150 rating. This fitting features an eight-inch socket opening suitable for connecting pipes or valves in various piping systems.

• Van Stone flange design allows secure connections between pipes
• Eight-inch socket opening connects easily to male pipes
• Made from glass-filled PVC for enhanced chemical and corrosion resistance

Product Highlights

This fitting is ideal for applications in chemical processing, chilled water distribution, and wastewater treatment. Its design and materials contribute to high strength, stiffness, and dimensional stability.

Product Information

Standard Information

• Brand: Spears
• MPN: 854-080

Technical Specifications

• Size: Eight inches
• Material: Glass-filled PVC
• Maximum Operating Temperature: One hundred and forty degrees Fahrenheit
• Pressure Rating: One hundred fifty pounds per square inch at seventy-three degrees Fahrenheit
• Standards Met: ASTM D1784 and D2467
• Certification: NSF for potable water service
• Flange Pattern: Class 150 per ANSI B16.5
