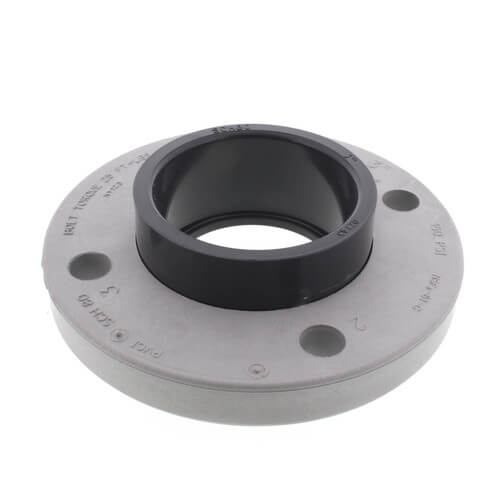

SPEARS 854-030 Sch80 PVC Van Stone Flange Socket 3 in

Product Description

The SPEARS 854-030 is a 3 inch Schedule 80 PVC Van Stone Flange Socket designed for reliable pipe connections. This two-piece fitting features a socket connection ideal for joining pipes and valves in various piping systems. It is suitable for use with Schedule 80 PVC pipes and fittings, making it a solid choice for chemical processing, industrial plating, and wastewater treatment applications.

• 3 inch Schedule 80 PVC Van Stone Flange Socket
• Two-piece construction for easy installation
• Socket connection enhances fluid flow

Product Highlights

The SPEARS 854-030 is essential for effective piping systems, ensuring secure connections in demanding environments.

Product Information

Standard Information

• Brand: SPEARS
• MPN: 854-030

Technical Specifications

• Nominal Size: 3 in
• Outside Diameter: 7.5 in
• Bolt Holes: 4
• Bolt Circle: 6 in
• Connection: Socket
• Pressure Rating: 150 psi
• Schedule: SCH 80
• Temperature: 73 deg F
• Material: PVC
• Number of Pieces: 2
• Thread Size: 3 inch
• Bolt Hole Diameter: 5/8 in
• Fitting Type: Flange
• Additional Information: 7.5 in OD, 6 in Bolt Circle Diameter, 2.125 in Length Through Hub
