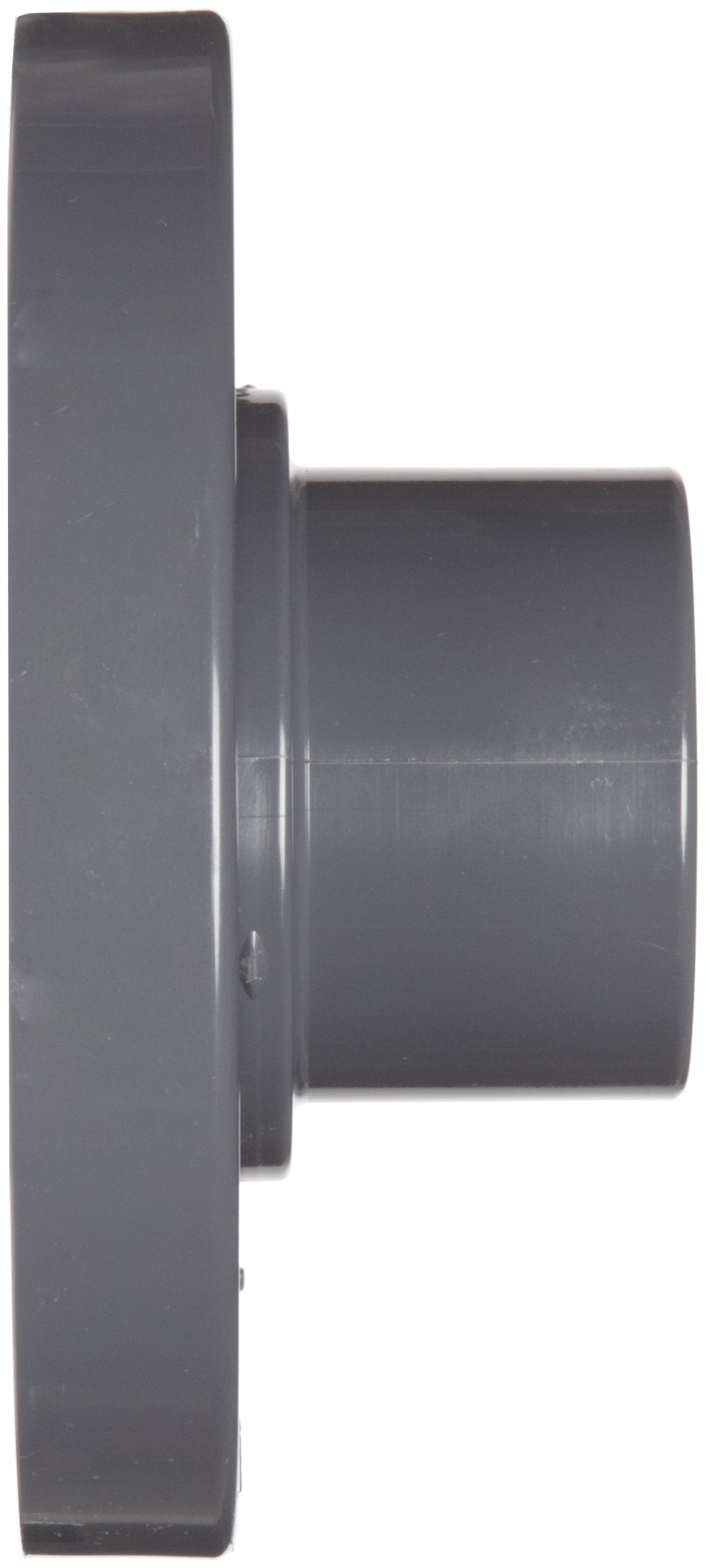

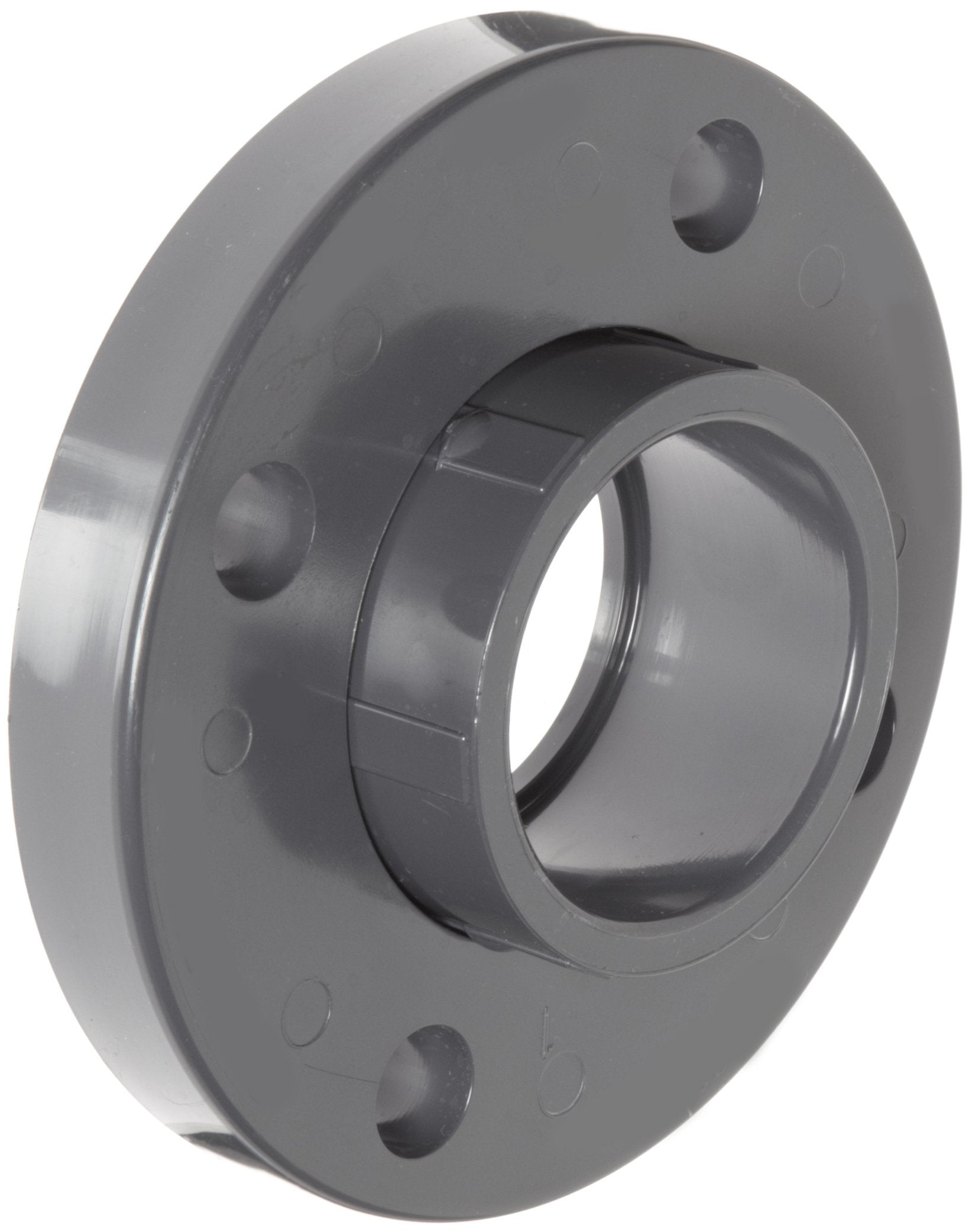

Spears 854-010 PVC Pipe Fitting, Van Stone Flange, Class 150, Schedule 80, Gray, 1 Socket

Product Description

The Spears 854-010 is a schedule 80 PVC Class 150 Van Stone flange fitting. It has a one-inch socket opening designed for connecting pipes or valves in various piping systems, or for attaching a pipe to a flat surface or flange. This fitting is built from gray PVC, which is known for its chemical and corrosion resistance, lightweight properties, and strength compared to metal fittings.

• Van Stone flange for joining pipes or connecting valves in a piping system.
• Socket opening for easy connection to male pipes or fittings.
• Compatible with schedule 80 PVC and features maximum operating temperature of 140 degrees Fahrenheit.

Product Highlights

This fitting is ideal for chemical processing, chilled water distribution, and wastewater treatment systems. The design includes a bolt ring that allows for independent rotation, aiding in bolt alignment for easier installations.

Product Information

Standard Information

• Brand: Spears
• MPN: 854-010

Technical Specifications

• Material: PVC
• Color: Gray
• Size: 1 inch
• Maximum Pressure: 150 psi at 73 degrees Fahrenheit
• Maximum Temperature: 140 degrees Fahrenheit
• Standards Met: ASTM D1784, ASTM D2467, NSF certified for potable water
• Dimensions: 4-1/4 inches outer diameter
• Weight: 0.36 lbs
