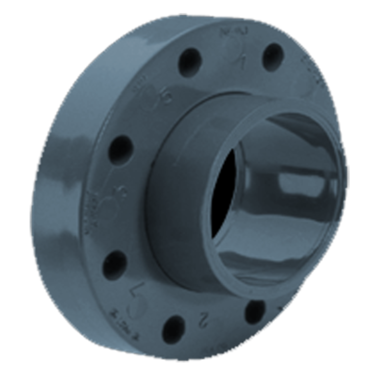

Spears 851-007C 3/4 CPVC One-Piece Flg Soc Cl150 150psi

Product Description

The Spears 851-007C flange is a one-piece fitting with a 3/4 inch nominal size and socket connection. Constructed from CPVC, it is designed for 150 psi pressure rating and Schedule 80/XH. This flange is suitable for use in various applications, including those involving hot corrosive liquids at service temperatures up to 200°F.

• Made of CPVC
• Features a socket connection
• Designed for 150 PSI maximum pressure

Product Highlights

The Spears CPVC flange offers chemical and corrosion resistance, higher temperature ratings, and higher flow capacity.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 851-007C

Technical Specifications

• Bolt Circle Diameter: 2-3/4 in
• Color: Gray
• Connection Type: Socket
• Material: CPVC
• Nominal Size: 3/4 in
• Outside Diameter: 3-7/8 in
• Pressure Rating: 150 psi
• Schedule Rating: SCH 80/XH
• Temperature Rating: 73 deg F
• Type: 1-Piece
• Manufacturer: Spears
• Size: 3/4"
• Product Type: Flange
• Product Group: Schedule 80 CPVC Fitting
• Connections: Socket
• Classification: Schedule 80
• Max Pressure (PSI): 150
