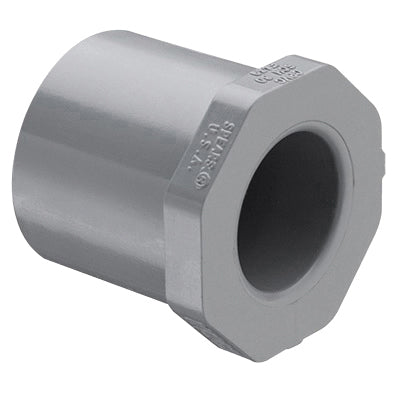

Spears 837-290C 2-1/2 X 1-1/4 CPVC REDUCING BUSHING SPGXSOC SCH80

Product Description

The Spears Manufacturing 837-290C is a bushing fitting designed for plumbing applications. This fitting has a nominal size of two and a half inches by one and a quarter inches. It features a spigot x socket connection and is made from CPVC material suitable for potable water. The part is rated for high-temperature applications with a maximum temperature of 200 degrees Fahrenheit.

• Type: Flush, Reducing
• Size: 2-1/2 Inch x 1-1/4 Inch
• Material: CPVC

Product Highlights

This product is beneficial for joining pipes of different diameters without leakage. The lead-free design and compliance with ANSI and NSF standards make it a safe choice for drinking water systems.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• UPC: 5421117718

Technical Specifications

• MPN: 837-290C
• Length: 2-5/32 Inch
• Thickness: 0.276 Inch
• Schedule: 80
• Application: Potable Water
• Material Specification: ASTM D1784/F439/D2467
• Temperature Rating: 200 Deg F
• End Connection: Spigot x Socket
