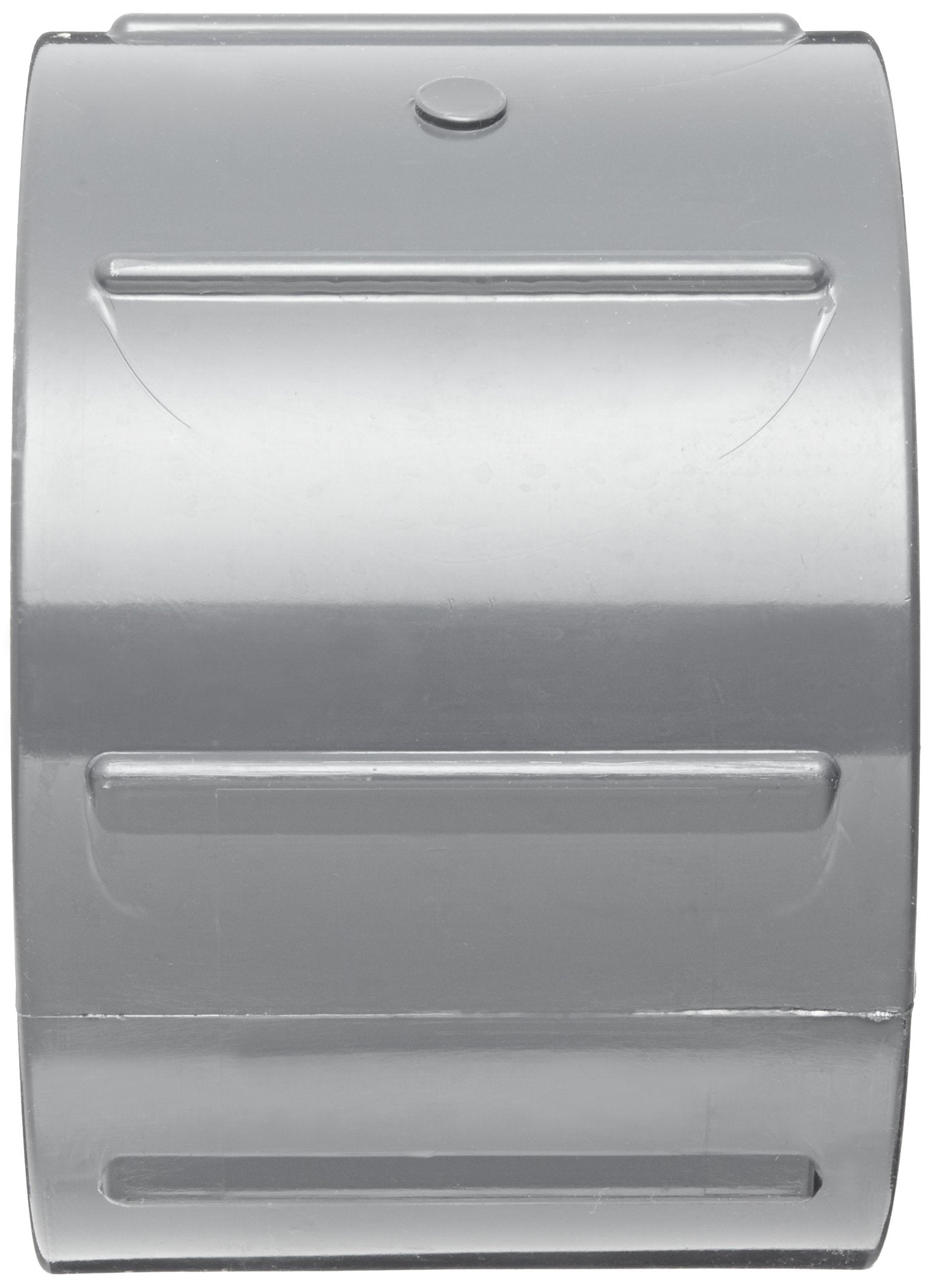

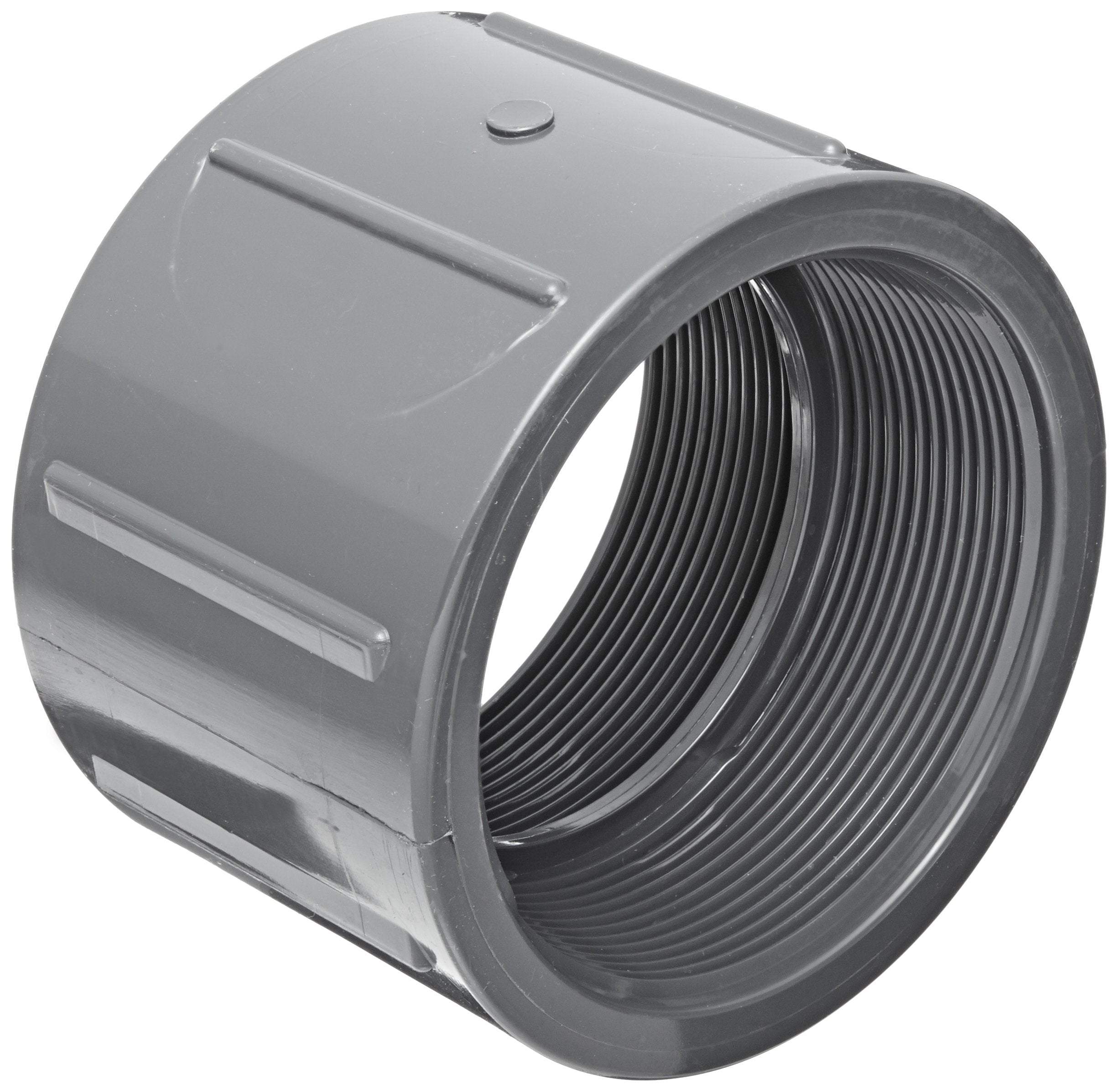

Spears 830-025 PVC Pipe Fitting Coupling Schedule 80 2-1/2 in NPT Female

Product Description

The Spears 830-025 is a schedule 80 PVC coupling designed for connecting two pipes with the same diameter in a straight run. This pipe fitting has female NPT threads on both ends, making it suitable for use with male NPT threaded pipes. It is constructed from gray PVC (polyvinyl chloride), providing both chemical and corrosion resistance, along with high strength and lower weight compared to metal fittings.

• Designed for chemical processing, industrial plating, and chilled water distribution.
• Compatible with schedule 80 PVC pipes and fittings.
• Meets ASTM standards for quality assurance and certified by NSF for potable water service.

Product Highlights

The Spears 830-025 coupling is ideal for extending a straight run and allows for easy connection of PVC to other materials such as steel or copper using transition fittings.

Product Information

Standard Information

• Brand: Spears
• Model: 830-025

Technical Specifications

• Size: 2-1/2 inches
• Material: PVC
• Color: Gray
• Connection Type: Female NPT
• Length: 3-5/16 inches
• Maximum Operating Temperature: 140 degrees F
• Standards: ASTM D1784 and D2467
• Usage: Potable water, waste water, chemical transfer
