Spears 830-007 Pvc Coupling 3/4 in Fnpt Sch 80

Product Description

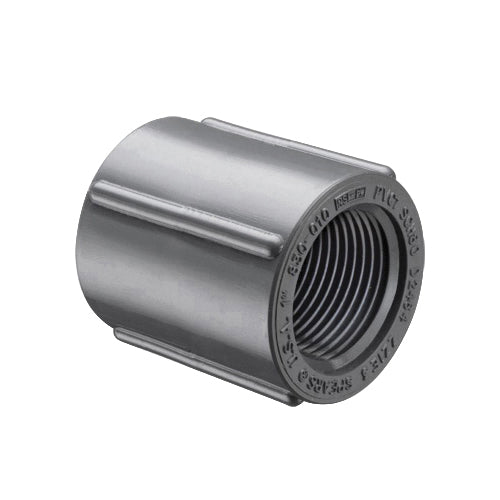

The SPEARS 830-007 is a standard Schedule 80 PVC coupling designed for threaded pipe connections in pressurized plumbing, industrial, and chemical distribution systems. Rated SCH 80/XH, this fitting offers greater wall thickness and pressure capacity than Schedule 40 alternatives, making it a reliable choice where added durability is required. The female NPT (FNPT) threads on both ends accept standard male-threaded pipe or fittings. Molded from gray PVC, the 830-007 measures 1-11/16 inches in length with a 1-5/8 inch outside diameter and weighs 0.09 pounds. Plumbers and pipefitters working on industrial or commercial systems will find this a straightforward, code-compatible threaded coupling.

This coupling is suited for residential and commercial plumbing, irrigation, chemical handling lines, and industrial fluid systems where PVC Schedule 80 pipe is specified. The FNPT configuration accepts standard NPT male pipe ends on both sides, allowing two pipe runs to be joined or a pipe run to be extended. Its molded PVC construction resists corrosion, making it appropriate for use with many chemicals and water treatment applications. Domestic manufacture supports projects requiring US-made components.

Key Features

• Schedule 80/XH wall thickness for higher pressure ratings than standard Schedule 40 fittings
• Female NPT threads on both ends for secure, leak-resistant threaded connections
• Molded gray PVC construction offers corrosion resistance and chemical compatibility
• Compact at 1-11/16 inches in length and 1-5/8 inches OD for tight-space installations
• Domestically manufactured in the United States

Compatibility

Designed as an OEM-style Schedule 80 PVC replacement coupling for 3/4 inch nominal FNPT threaded pipe systems in plumbing and industrial piping applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure completely before removing or installing any fitting. Apply thread sealant tape or compound rated for PVC and NPT threads to the male pipe ends before making up the connection. Do not overtighten FNPT PVC fittings, as excess torque can crack the fitting body.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: FNPT
• Schedule Rating: SCH 80/XH
• Outside Diameter: 1-5/8 inches
• Length: 1-11/16 inches
• Weight: 0.09 pounds
• Material: PVC
• Color: Gray
• Method of Manufacture: Molded
• Country of Origin: US

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211168547
