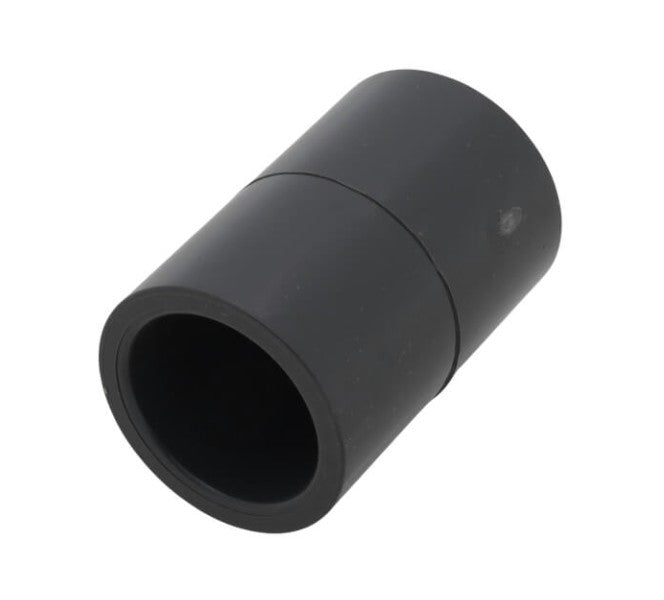

Spears 829-007 Pvc Coupling 3/4 in Socket Sch 80/XH

Product Description

The SPEARS 829-007 is a 3/4 inch nominal, Schedule 80/XH PVC standard coupling designed for socket-end connections in pressure piping systems. Molded from PVC Type I (cell classification 12454) and rated to 150 psi non-shock at 73 degrees F, this coupling joins same-diameter pipe runs in a wide range of industrial, commercial, and plumbing applications. At 2.125 inches in length and 1.4375 inches in width, it is a compact, full-schedule fitting that delivers consistent wall thickness and reliable joint integrity. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting as part of solvent-welded SCH 80 piping assemblies.

This coupling is suited for use in corrosive fluid handling, chemical process lines, irrigation, and potable water distribution systems where a heavier-schedule PVC fitting is specified. Its gray color is standard for SCH 80 PVC, making it easy to distinguish from lighter-schedule components on the job. The fitting is manufactured domestically by Spears Manufacturing and certified for potable water service by NSF International, making it appropriate for both industrial and municipal water system work.

Key Features

• 150 psi non-shock pressure rating at 73 degrees F
• Schedule 80/XH wall thickness for heavy-duty service
• Socket end style for solvent-cement connections
• PVC Type I, cell classification 12454 per ASTM D1784
• NSF-certified for potable water service
• Injection molded construction per ASTM D2467
• Domestically manufactured in the United States

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch Schedule 80 PVC piping systems using socket-end, solvent-welded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter following applicable IPC or local plumbing code requirements. Depressurize and drain the line completely before cutting into an existing system. Use only PVC-rated solvent cement and primer appropriate for SCH 80 fittings, and allow full cure time before restoring pressure. Do not exceed the rated working pressure or use this fitting with fluids or temperatures outside the published PVC service range.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: Socket
• Schedule Rating: SCH 80/XH
• Pressure Rating: 150 psi non-shock at 73 degrees F
• Length: 2.125 inches
• Width: 1.4375 inches
• Weight: 0.07 pounds
• Material: PVC Type I, Cell Classification 12454
• Color: Gray
• Method of Manufacture: Injection Molded
• Standards and Approvals: ASTM D1784, ASTM D2467, ANSI B16.5, NSF Potable Water Certified
• Country of Origin: United States

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 829-007
