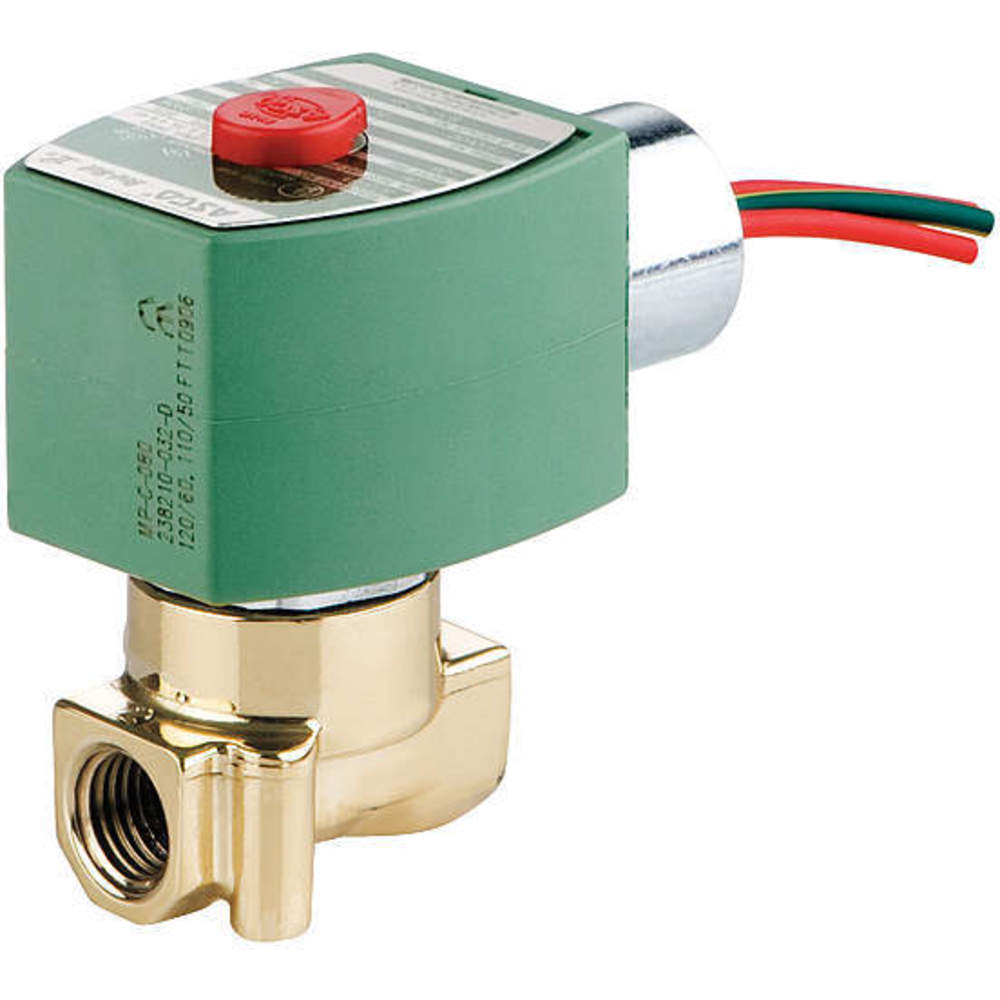

SPEARS 8262H022 Solenoid Valve, 2-Way/2-Position, 1/4 in. NPTF, 24V AC

Product Description

The SPEARS 8262H022 is a 2-way, 2-position solenoid valve. It features a brass body and NBR seal material, making it suitable for various applications including boilers, burners, and food processing equipment. This valve is designed for normally closed operation and controls the flow of air, inert gas, light oil, and water.

• Normally Closed configuration
• Brass body material
• Compatible with multiple media types

Product Highlights

The SPEARS solenoid valve is ideal for applications where reliable flow control is needed. It is rated for both indoor and outdoor use and can operate in various hazardous environments.

Product Information

Standard Information

• Item: Solenoid Valve
• Body Material: Brass

Technical Specifications

• Pipe Size: 1/4 inches
• Seal Material: NBR
• Voltage: 24V AC
• Wattage: 6.1 W
• Coil Insulation Class: F
• Max Fluid Temperature: 180°F
• NEMA Rating: NEMA 1, 2, 3, 4, 4X
• Response Time: 1 second
