Spears 824-030F 3 PVC 60 Elbow Socket Sch80 Fabricated

Product Description

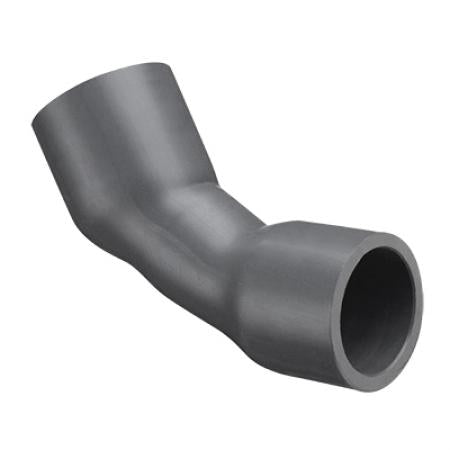

The Spears 824-030F is a three-inch PVC 60-degree elbow fitting designed for use in various piping systems. This socket-style fitting is made from PVC material and is rated for Schedule 80 applications, ensuring high durability and resistance to pressure. It is suitable for both domestic and industrial installations.

• Meets ANSI B16.5 and ASTM D2467 standards.
• 150 psi pressure rating, ideal for heavy-duty applications.
• Easy to install with Socket x Socket joints.

Product Highlights

The Spears 824-030F elbow fitting connects piping at a 60-degree angle, facilitating smooth transitions in plumbing setups.

Product Information

Standard Information

• Brand: Spears
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 3 in
• End Style: Socket
• Material: PVC
• Pressure Rating: 150 psi
• Schedule Rating: SCH 80
• Temperature Rating: 73 deg F
• Method of Manufacture: Fabricated
• Fitting/Connector Type: 60 deg Elbow
