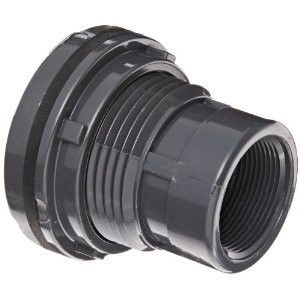

Spears 8171E-020 2 PVC Tank Adapter SOCXFIPT EPDM Gasket

Product Description

The Spears 8171E-020 is a two-inch PVC tank adapter designed for socket to FNPT connections. It features a strong EPDM gasket seal suited for high-pressure applications. This product is made of durable PVC and is intended for use in various plumbing configurations.

• Nominal Size: 2 inches
• Pressure Rating: 150 psi
• Length: 4-1/8 inches

Product Highlights

The Spears 8171E-020 is ideal for creating reliable connections in water systems. It is compliant with industry standards and certified for potable water services. This adapter is suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Spears
• MPN: 8171E-020

Technical Specifications

• Fitting Type: Adapter
• Material: PVC
• Seal Material: EPDM Gasket
• End Style: Socket x FNPT
• Schedule Rating: SCH 80/XH
• Temperature Rating: 73 degrees F
• Domestic/Import: Domestic
• Standards/Approval: NSF Approved, ANSI B16.5, ASTM D1784, ASTM D1785, ASTM D2467, ASTM D2564
