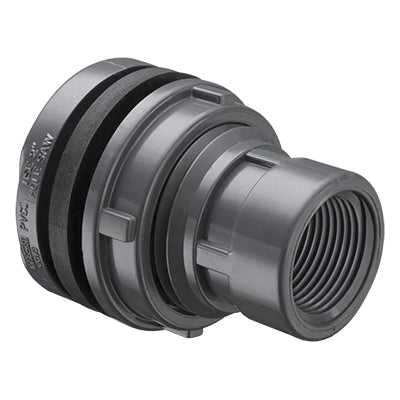

Spears 8171E-007 Tank Adapter with EPDM Gasket 3/4 Inch PVC Socket x FIPT Schedule 80

Product Description

The Spears 8171E-007 is a tank adapter designed for use in piping systems. This fitting features a three-fourths inch nominal size with a PVC socket x FIPT end connection, suitable for connection to various piping systems. This product includes an EPDM gasket to ensure a secure seal, preventing leaks during operation.

• Network Approval: This product meets ANSI B16.5 and ASTM standards.
• Material: Constructed from high-quality PVC, ensuring durability and resistance to corrosion.
• Pressure Rating: Rated for up to 150 psi, suitable for a wide range of applications.

Product Highlights

The Spears tank adapter is ideal for commercial and industrial piping systems where reliable connections are needed. It is easy to install and fits standard PVC piping.

Product Information

Standard Information

• Brand: Spears
• Model Number: 8171E-007

Technical Specifications

• Nominal Size: Three-fourths inch
• End Connection: Socket x FIPT
• Material: PVC
• Type: With EPDM gasket
• Schedule: 80
• Length: Two and fifteen-sixteenths inches
• Pressure Rating: 150 psi
• Temperature Rating: Seventy-three degrees Fahrenheit
• Application: Piping system
