Product Description

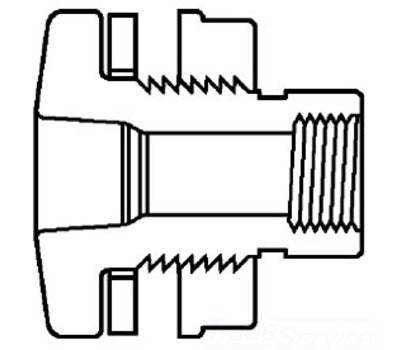

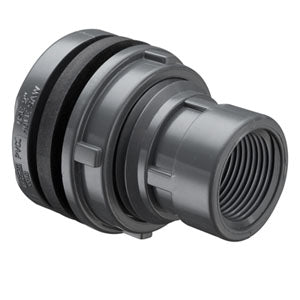

The Spears 8171-007 PVC Bulkhead Tank Fitting is designed for use in flat tanks. It features a 3/4 inch FNPT inside connection and a 1 5/8 inch socket connection. The fitting is made of durable PVC and includes a neoprene gasket for a reliable seal.
- Made in the United States
- 150 psi pressure rating
- For use in flat tanks
Product Highlights
Spears 8171-007 PVC Bulkhead Tank Fitting offers a strong and reliable solution for connecting pipes through tank walls. The product is designed to withstand high pressure and temperature conditions.
Product Information
Standard Information
-
Brand: Spears
-
MPN: 8171-007
Technical Specifications
-
Fitting Material: PVC
-
Gasket Material: Neoprene
-
Connection Type: FNPT x Socket
-
Inside Connection Size: 3/4 inch
-
Outside Connection Size: 1 5/8 inch
-
Schedule: 80
-
Maximum Operating Pressure: 150 psi
-
Maximum Operating Temperature: 73 degrees Fahrenheit
-
Minimum Operating Temperature: 0 degrees Fahrenheit
