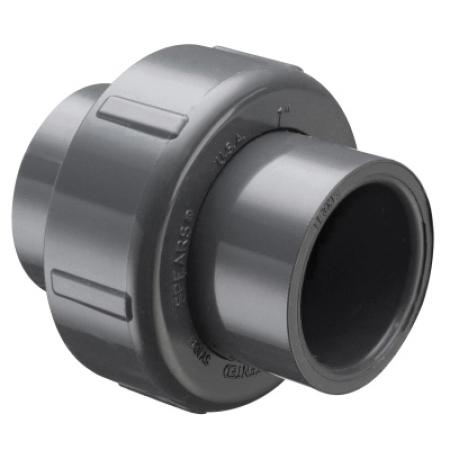

Spears 8057-030 3 PVC Union Soc Viton Sch80

Product Description

The Spears 8057-030 is a high-quality PVC union fitting with a nominal size of three inches. It features a socket end style and is crafted to meet Sch80 standards. This fitting is designed for a pressure rating of 235 psi and is made using a molded manufacturing method. The integration of a Viton O-ring seal ensures effective sealing in demanding applications.

• Material: PVC
• Pressure Rating: 235 psi
• Length: 4-1/4 inches

Product Highlights

Use this fitting in various plumbing projects requiring reliable connections. It is well-suited for both residential and commercial applications.

Product Information

Standard Information

• Brand: Spears
• MPN: 8057-030

Technical Specifications

• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Fitting/Connector Type: Union
• Length: 4-1/4 inches
• Material: PVC
• Method of Manufacture: Molded
• Nominal Size: 3 inches
• Pressure Rating: 235 psi
• Schedule Rating: SCH 80/XH
• Seal Material: FKM O-Ring
• Series: 2000
• Temperature Rating: 73 deg F
