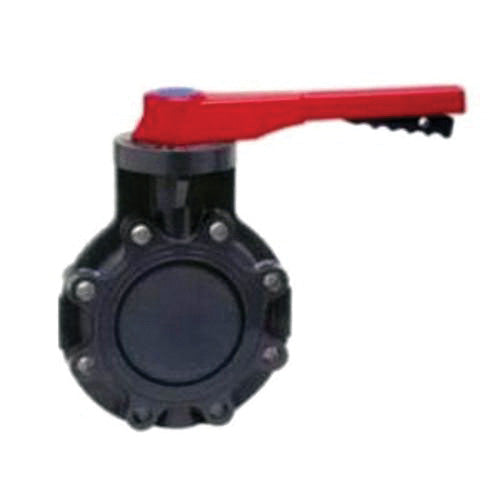

Spears 723311-020 2 PVC Butterfly Valve FKM W/Handle

Product Description

The Spears 723311-020 is a two-inch PVC butterfly valve with a lever handle actuator. It is rated for 150 pounds pressure and capable of handling temperatures up to 140 degrees Fahrenheit. This valve has a length from inlet to outlet of one and fifteen-sixteenths inches and a height from top to inlet center of six and thirteen-thirty-seconds inches. The body is made from PVC, while the stem and pin are crafted from 316L stainless steel. The valve also features FKM sealing material, making it suitable for various applications.

• Durable PVC construction and stainless steel components
• Designed for pressure handling of 150 psi
• Easy to operate lever handle with multiple stops

Product Highlights

This valve is ideal for flow control and throttling in industrial and chemical processing settings.

Product Information

Standard Information

• Manufacturer: Spears
• Part Number: 723311-020

Technical Specifications

• Nominal Size: 2 inches
• Body Material: PVC
• Pressure Rating: 150 lb
• Temperature Rating: 140 degrees Fahrenheit
• Dimensions: 6 inches diameter x 9 and 11/32 inches height
• Inlet to Outlet Length: 1 and 15/16 inches
• Softgoods Material: FKM
• Stem Material: 316L Stainless Steel
• Actuator Type: Lever Handle
